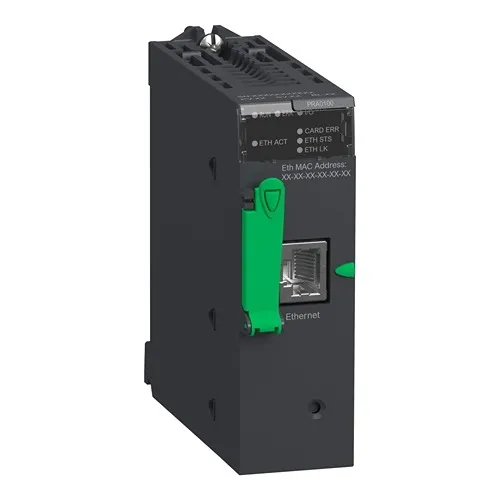

BMXPRA0100
Peripheral Remote Io Adaptor Module, Modicon X80, Max 1024 Discrete With 256 Analog Io, Ethernet
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon X80 |
|---|---|
| product or component type | Peripheral remote I/O adaptor |
| Number of port | 1 |
|---|---|
| Integrated connection type | Ethernet/IP device network |
| Communication port protocol | Modbus TCP |
| Realtime clock | With |
| Memory capacity | 448 kB internal 96 kB removable |
| Application structure | 1 master task |
| Local signalling | Module active (RUN) 1 LED green) Module error (ERR) 1 LED red) External fault (I/O) 1 LED red) Activity on Ethernet network (ETH ACT) 1 LED green) Memory card fault (CARD ERR) 1 LED red) Ethernet link diagnostics (STS) 1 LED green) Ethernet network status (link) 1 LED green) |
| Product compatibility | 0…1024 discrete I/O module 0…256 analog I/O module 0…2 Ethernet module |
| Average consumption in mA | 95 mA |
| Power dissipation in W | 2.3 W |
| marking | CE |
| module format | Standard |
| Maximum altitude transport | 9842.52 ft (3000 m) |
| Relative humidity | 95 % without condensation |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2014/34/EU - ATEX directive |
|---|---|
| Product certifications | CE UL CSA RCM EAC Merchant Navy ATEX zone 2/22 IECEx zone 2/22 |
| Standards | EN/IEC 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G EN/IEC 60079-0 |
| Environmental characteristic | Hazardous location class I division 2 |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Operating altitude |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.17 in (5.500 cm) |
| Package 1 Width | 4.33 in (11.000 cm) |
| Package 1 Length | 4.53 in (11.500 cm) |
| Package 1 Weight | 8.40 oz (238.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 8.82 lb(US) (4.000 kg) |
