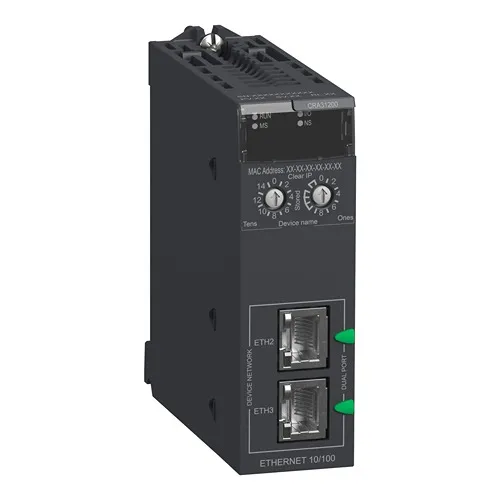

BMXCRA31200
Remote Io Drop E/Ip, Modicon X80, Standard
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon X80 |
|---|---|
| Range compatibility | Modicon M580 Modicon Quantum |
| product or component type | I/O expansion module |
| Device application | X80 Ethernet RIO drop adaptor |
| Product specific application | For remote I/O modules |
| Bus type | Bus X across the remote backplane |
|---|---|
| Number of port | 2 |
| Integrated connection type | 2 port Ethernet RIO Network (RSTP) |
| Communication network type | IPv4 (internet protocol) |
| Communication port protocol | EtherNet/IP |
| Communication service | Ethernet/IP adapter RSTP (Ring topology support) Ethernet RIO network Quality of Service (QoS) CIP Explicit messaging (server) Modbus TCP server for module diagnostics DHCP client TFTP client FTP client FDR client SNTP client SNMP agent |
| Cybersecurity | Syslog protocol support |
| Connector type | 2 RJ45 |
| Exchange mode | Half duplex, full duplex, autonegotiation, auto MDIX |
| Transmission rate | 10/100 Mbit/s |
| Port Ethernet | 10/100BASE-TX |
| Function available | CCOTF (configuration change on the fly) Input data is collected and published to the remote I/O head adaptor Output modules are updated with the data received from remote I/O head adaptor Diagnostics for remote I/O devices (Device DDT) I/O extension rack |
| Data recording | 10 ms time stamps |
| Topology | Ring |
| Local signalling | Module active (RUN) 1 LED green) Module error (ERR) 1 LED red) Module status (Mod Status) 1 LED green/red) Network communication status (Net Status) 1 LED green/red) Ethernet link diagnostics (STS) 1 LED green) |
| Current consumption | 1200 mA |
| Input voltage | 3.3 V DC |
| Product compatibility | 0…128 discrete channel 0…16 analog channel |
| module format | Standard |
| net weight | 0.50 lb(US) (0.225 kg) |
| Maximum altitude transport | 9842.52 ft (3000 m) |
| Relative humidity | 95 % without condensation |
| Fixing mode | By screws |
| Mounting mode | Rack-mounted |
| Width | 1.26 in (32 mm) |
| Height | 3.94 in (100 mm) |
| Depth | 3.44 in (87.5 mm) |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
|---|---|
| Product certifications | CE UL CSA RCM EAC Merchant Navy |
| Standards | EN/IEC 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G |
| Environmental characteristic | Standard environment |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Operating altitude |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.28 in (5.800 cm) |
| Package 1 Width | 4.41 in (11.200 cm) |
| Package 1 Length | 4.80 in (12.200 cm) |
| Package 1 Weight | 8.15 oz (231.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 8.39 lb(US) (3.805 kg) |
