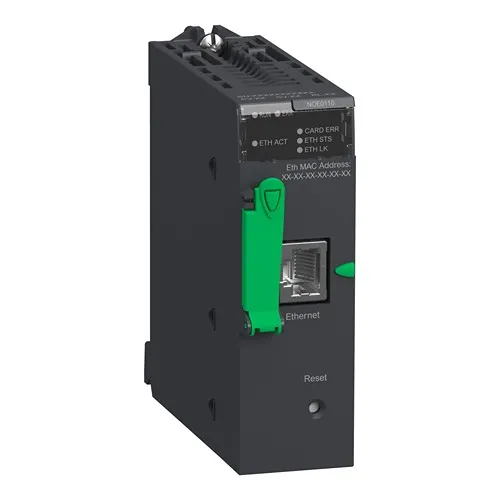

BMXNOE0110
Ethernet Tcp/Ip Network Module, Modicon M340 Automation Platform, Flash Memory Card, Internal Ram 16 Mb, 1 X Rj45 10/100
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon M340 automation platform |
|---|---|
| product or component type | Ethernet TCP/IP network module |
| Concept | Transparent Ready |
| Integrated connection type | Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30 |
| protective treatment | TC |
| Communication service | Bandwidth management FDR server Rack Viewer SNMP network administrator Global Data I/O scanning Modbus TCP messaging Web server configurable Data Editor (via PC, pocket PC or PDA terminal) SOAP XML Web service (server) |
|---|---|
| Port Ethernet | 10BASE-T/100BASE-TX |
| Memory description | Supplied Flash memory card (BMXRWSC016M) Internal RAM 16000 kB |
| Memory usage | User web page size internal RAM Activating the standard web server supplied Flash memory card (BMXRWSC016M) Application saving supplied Flash memory card (BMXRWSC016M) |
| Supply | Internal power supply via rack |
| marking | CE |
| Local signalling | Activity on Ethernet network (ETH ACT) 1 LED green) Processor running (RUN) 1 LED green) Status of Ethernet network (ETH STS) 1 LED green) Data rate (ETH 100) 1 LED red) Memory card fault (CARD ERR) 1 LED red) Processor or system fault (ERR) 1 LED red) |
| Control type | RESET push-button cold restart |
| Current consumption | 90 mA 24 V DC |
| module format | Standard |
| net weight | 0.44 lb(US) (0.2 kg) |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
|---|---|
| Relative humidity | 10…95 % without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.20 in (5.600 cm) |
| Package 1 Width | 4.53 in (11.500 cm) |
| Package 1 Length | 4.72 in (12.000 cm) |
| Package 1 Weight | 8.40 oz (238.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 8.71 lb(US) (3.951 kg) |
