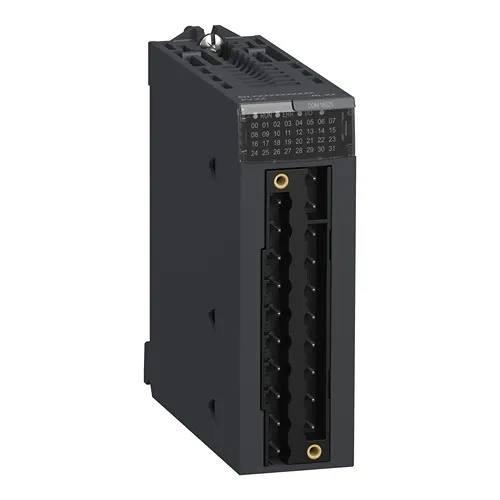

BMXDDM16025
Discrete Mixed Io Module, Modicon X80, 8 Inputs, 24V Dc, 8 Relay Outputs, 24 To 240V Ac Positive
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon X80 |
|---|---|
| product or component type | Discrete I/O module |
| Discrete input number | 8 |
| Input type | Current sink (logic positive) |
| Discrete input voltage | 24 V DC positive |
| Discrete input current | 3.5 mA |
| Discrete output number | 8 |
| discrete output type | Relay |
| Discrete output voltage | 24 V 19...30 V DC 24...240 V 19...264 V AC |
| discrete output current | 2000 mA |
| Input compatibility | With 2-wire/3-wire proximity sensors IEC 60947-5-2 With 2-wire/3-wire proximity sensors IEC 61131-2 type 3 |
|---|---|
| Sensor power supply | 19...30 V |
| Current state 1 guaranteed | >= 2 mA |
| Current state 0 guaranteed | |
| Input impedance | 6800 Ohm |
| Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 3.1 W |
| DC typical response time | 4 ms |
| DC maximum response time | 7 ms |
| Response time on output | |
| Paralleling of inputs | No |
| Typical current consumption | 79 mA 3.3 V DC |
| MTBF reliability | 940000 H |
| Protection type | 1 external fuse per group of input channel 0.5 A fast blow reverse polarity protection on input 1 external fuse per output channel or group of output channel fast blow |
| Voltage detection threshold | > 18 V DC sensor OK |
| Minimum switching current | 1 mA 5 V DC |
| Maximum switching voltage | 125 V DC 264 V AC |
| Mechanical durability | 20000000 cycles |
| Electrical durability | AC-14 100000 cycles 240 VA 240 V 0.7) AC-14 100000 cycles 300 VA 200 V 0.7) AC-15 100000 cycles 120 VA 240 V 0.35) AC-15 100000 cycles 200 VA 200 V 0.35) DC-13 100000 cycles 24 W 24 V AC-14 300000 cycles 72 VA 240 V 0.7) AC-14 300000 cycles 80 VA 200 V 0.7) AC-15 300000 cycles 36 VA 240 V 0.35) AC-15 300000 cycles 60 VA 200 V 0.35) DC-13 300000 cycles 7.2 W 24 V |
| Switching frequency | 1 Hz |
| Status LED | 1 LED (green) module operating (RUN) 1 LED per channel (green) channel diagnostic 1 LED (red) module error (ERR) 1 LED (red) module I/O |
| net weight | 0.30 lb(US) (0.135 kg) |
| IP degree of protection | IP20 |
|---|---|
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Dielectric strength | 1500 V AC 50/60 Hz 1 minute, primary/secondary 2830 V AC 50/60 Hz 1 minute, output relay 500 V DC 1 minute, between group of I/O |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| Operating altitude | 0...2000 m 2000...5000 m with derating factor |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.01 in (5.100 cm) |
| Package 1 Width | 4.57 in (11.600 cm) |
| Package 1 Length | 4.65 in (11.800 cm) |
| Package 1 Weight | 5.61 oz (159.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 6.08 lb(US) (2.760 kg) |
