BMXXBP0400

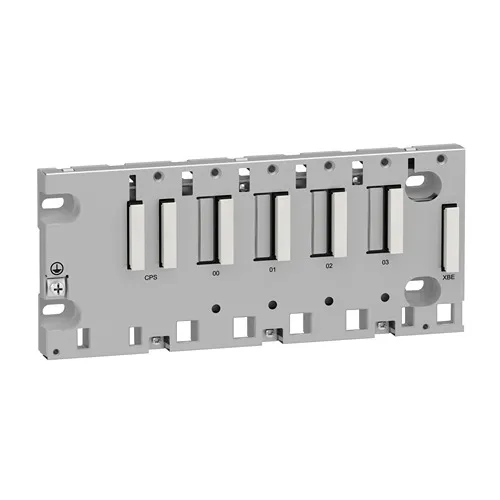

Backplane, Modicon X80 Automation Platform, 4 Slots, Panel, Plate Or Din Rail Mounting
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon X80 |
|---|---|
| product or component type | Backplane |
| Number of slots | 4 bus X |
|---|---|
| Product compatibility | BMXP34 processor BMXCPS power supply I/O module Specific application module |
| power consumption in W | 1.12 W |
| Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 M4/M5/M6 screws panel By 4 M4/M5/M6 screws mounting plate By clips 35 mm symmetrical DIN rail |
| Height | 4.08 in (103.7 mm) |
| Width | 9.54 in (242.4 mm) |
| Depth | 0.75 in (19 mm) |
| net weight | 1.39 lb(US) (0.63 kg) |
| IP degree of protection | IP20 |
|---|---|
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Relative humidity | 10…95 % without condensation |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE UL CSA RCM EAC UKCA Merchant Navy |
| Standards | EN/IEC 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.60 in (6.600 cm) |
| Package 1 Width | 5.98 in (15.200 cm) |
| Package 1 Length | 12.80 in (32.500 cm) |
| Package 1 Weight | 24.02 oz (681.000 g) |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 13 |
| Package 2 Height | 11.81 in (30.000 cm) |
| Package 2 Width | 15.75 in (40.000 cm) |
| Package 2 Length | 23.62 in (60.000 cm) |
| Package 2 Weight | 21.28 lb(US) (9.651 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 78 |
| Package 3 Height | 41.34 in (105.000 cm) |
| Package 3 Width | 23.62 in (60.000 cm) |
| Package 3 Length | 31.50 in (80.000 cm) |
| Package 3 Weight | 146.83 lb(US) (66.600 kg) |
