BR20M-TDTD-P

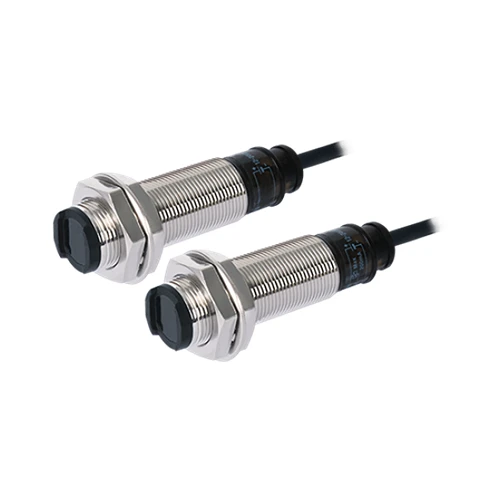

Sensor, Photo, Through Beam, 20 Meter Range, 18mm Round Brass, Dark On, PNP Output, 12-24 VDC

SENSORS

||

AUTONICS

5.00 10

10 Review(s)
$100.73 $83.94 / each
1
BR20M-TDTD-P
AUTONICS
FACTORY SEALED
BR20M-TDTD-P - Datasheet.pdf
  • Quality-checked industrial automation parts
  • Secure ordering with responsive customer support
  • Worldwide shipping for critical replacement parts
Fast Delivery
Top Brands
Worldwide Delivery
Secure Transaction

  • Quality Assurance

    OEM Quality Spare Parts.

  • Secure Shopping

    100% Money Back Guarantee.

  • 30-DAY RETURNS

    30 Days After-sales Return.

  • Worldwide Delivery

    Worldwide Fast Shipping.

Sensing typeThrough-beam type
Sensing distance20m
Sensing targetOpaque material of min. Ø15mm
Light sourceInfrared LED(850nm)
Response timeMax. 1ms
Power supply12-24VDC EQ Â±10%(ripple P-P: max. 10%)
Current consumptionEmitter/Receiver: Max. 45mA
Sensitivity adjustmentFixed
Operation modeDark ON
Control outputPNP open collector
Connection typeCable type(Ø5, 2m)
Environment_Ambient illuminationSunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature-10 to 60℃, storage: -25 to 75?
Protection structureIP67
ApprovalCE
Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
MaterialCase - Brass, Ni-plate
Sensing part - Polycarbonate lens
Accessories_Commonfixing nuts, Washer
WeightApprox. 340g(approx. 300g)
