Quality Assurance
OEM Quality Spare Parts.
In Stock
(38 Available)

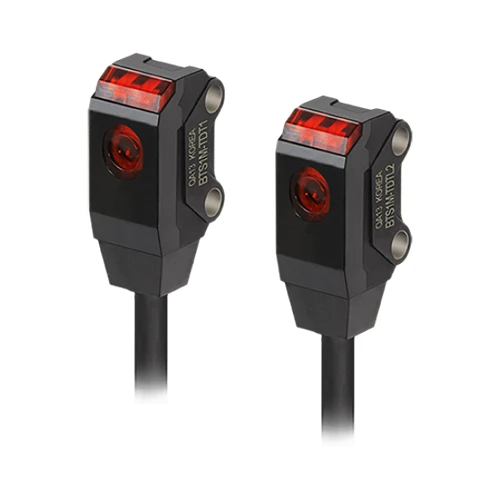

BTS1M-TDTL
Sensor, Photo, Through beam, 1M Sensing Distance, Light On, NPN Output, 12-24VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Sensing type | Through-beam type |
|---|---|
| Sensing distance | 1m |
| Sensing target | Opaque material of min. Ø2mm |
| Light source | Red LED(650nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Emitter/Receiver: Max. 20mA |
| Operation mode | Light ON |
| Control output | NPN open collector |
| Connection type | Cable type(Ø2.5, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -20 to 55℃, storage: -30 to 70℃ |
| Protection structure | IP67 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Polybutylene terephthalate, Sensing part: Polymethyl methacrylate, Bracket: Stainless steel 304, Bolt: Carbon steel wire for cold heading(SWCH10A) |
| Weight | Approx. 65g(approx. 40g) |
The exact weight of the cargo you've scheduled will be measured at the QUANTUM FIRST AUTOMATION office. We will send you an email with a payment link if the weight difference is larger than the shipment amount. The payment link email will include the new weight and the difference amount that must be paid. If you have any queries concerning this procedure, please contact our customer support team at +1-905-625-3500.
