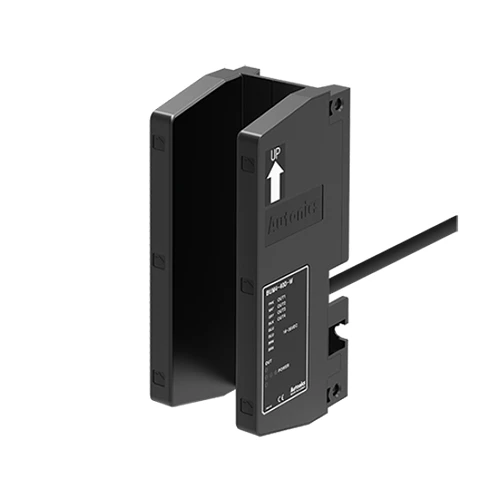

BUM4-40D-W-3M/A
Sensor, Photo, 4-CH U-Shaped Type, Dark On, NPN Output(Individual 4 output), 3M Cable, H01/H04 Bracket, 18-35 VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Sensing type | Through-beam type |
|---|---|
| Sensing Cannel | 4-channel |
| Sensing distance | 40mm |
| Sensing target | Opaquematerial of min. Ø4mm |
| Light source | Infrared LED(940nm) |
| Response time | Max. 1ms |
| Power supply | 18-35VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 50mA |
| Sensitivity adjustment | Fixed |
| Operation mode | Dark ON |
| Control output | NPN open collector(individual 4 outputs) |
| Connection type | Cable type(Ø6, 3m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 65℃, storage: -25 to 70℃ |
| Protection structure | IP65 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case, Cover: ABS |
| Bracket | H01/H04(G01) |
| Weight | Approx. 1.5kg(approx. 500g) |
