BW40-06P

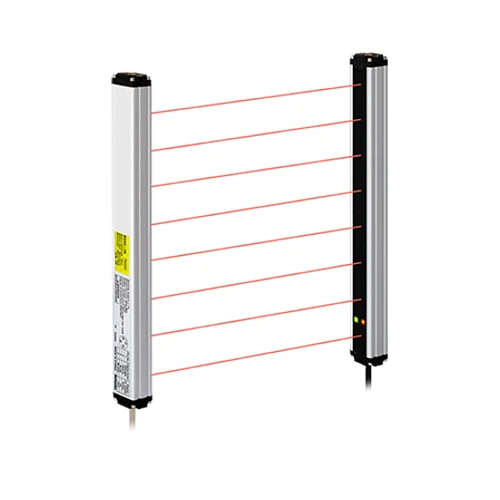

Sensor, Area, PNP open collector output. 06pcs & 40mm pitch optical axis , 200mm length 12-24VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Sensing type | Through-beam type(direct beam) |
|---|---|
| Sensing distance | 0.1 to 7m |
| Light source | Infrared LED(850nm modulated) |
| Optical axis pitch | 40mm |
| Number of optical axes | 6 |
| Sensing height/Total length | 200/240mm |
| Power supply | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Control output | PNP open collector |
| Operation mode | Light ON |
| Environment_Ambient illumination | Ambient light: Max. 10,000lx(receiver illumination) |
| Environment_Ambient temperature | -10 to 55℃, storage: -20 to 60℃ |
| Connection type | Cable connector type(Ø5, 300mm, M12) |
| Protection structure | IP65 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Min. sensing target | Opaque material of min. Ø50mm |
| Response time | Max. 10ms |
| Material | • Case: Aluminum, • Front cover, sensing part: Acrylic |
| Cable specification | Ø5mm, 4-wire, 300mm, M12 connector |
| Accessories | Bracket A: 4, Bracket B: 4, Fixing bolt: 8 |
| Weight | BW40-24: Approx. 2.1kg(approx. 1.4kg) |
