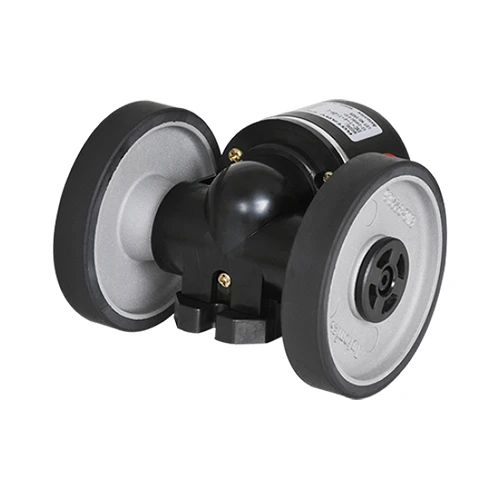

ENC-1-3-V-24-C
Encoder, Incremental, Wheel Type, 1 Pulse Per 1m, Voltage output, 12-24 VDC, Cable outgoing connector
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Autonics ENC Series General Specifications | |||
| Item | Wheel type of incremental rotary encoder | ||
| Resolution (P/R)1 | Refer to resolution (Next page) | ||
| Electrical specification | Output phase | A, B phase | |
| Phase difference of output | Phase difference between A and B :  | ||
| Control output | Totem pole output | • Low - Load current: Max. 30mA, Residual voltage: Max. 0.4VDC • High - Load current: Max. 10mA, Output voltage (Power voltage 5VDC): Min. (Power voltage-2.0)VDC, Output voltage (Power voltage 12-24VDC): Min. (Power voltage-3.0)VDC | |
| NPN open collector output | Load current: Max. 30mA, Residual voltage: Max. 0.4VDC | ||
| Voltage output | Load current: Max. 10mA, Residual voltage: Max. 0.4VDC | ||
| Response time (Rise/Fall) | Totem pole output | Max. 1μs (Cable length: 2m, I sink = 20mA) | |
| NPN open collector output | |||
| Voltage output | |||
| Max. Response frequency | 180kHz | ||
| Power supply | • 5VDC ±5% (Ripple P-P: Max. 5%) • 12-24VDC ±5% (Ripple P-P: Max. 5%) | ||
| Current consumption | Max. 80mA (disconnection of the load) | ||
| Insulation resistance | Min. 100MΩ (at 500VDC megger between all terminals and case) | ||
| Dielectric strength | 750VAC 50/60Hz for 1 minute (Between all terminals and case) | ||
| Connection | Cable type, Cable connector type | ||
| Mechanical specification | Starting torque | Depend on coefficient of friction | |
| Max. allowable revolution2 | 5000rpm | ||
| Vibration | 1.5mm amplitude at frequency of 10 to 55Hz (for 1 min.) in each X, Y, Z direction for 2 hours | ||
| Shock | Approx. Max. 75G | ||
| Environment | Ambient temperature | -10 to 70°C (at non-freezing status), storage: -25 to 85°C | |
| Ambient humidity | 35 to 85%RH, storage: 35 to 90%RH | ||
| Cable | Cable type | Ø5mm, 4-wire, Length: 2m, Shield cable (AWG24, Core diameter: 0.08mm, Number of cores: 40, Insulator out diameter: Ø1mm) | |
| Cable connector type | Ø5mm, 5-wire, Length: 250mm, Shield cable (AWG24, Core diameter: 0.08mm, Number of cores: 40, Insulator out diameter: Ø1mm) | ||
| Protection structure | IP50 (IEC standard) | ||
| Approval | CE | ||
| Unit weight | Approx. 494g | ||
