AUTONICS

fx4y-i4 AUTONICS

fx4y-i4
left swipe Rotate image right swipe

In Stock (16 Available)

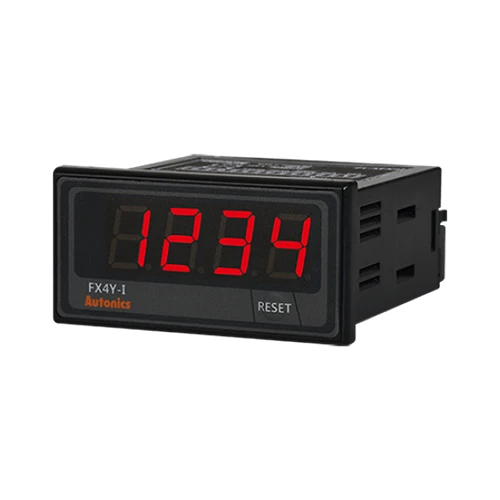

FX4Y-I4

Counter & Timer. W72xH36mm, 4-Digit, LED, Indicator Only, 100-240VAC 50/60Hz

TIMERS

||

AUTONICS

5.00 10

10 Review(s)
$128.54 $107.12 / each
1
FX4Y-I4
AUTONICS
FACTORY SEALED
FX4Y-I4 - Datasheet.pdf
  • Quality-checked industrial automation parts
  • Secure ordering with responsive customer support
  • Worldwide shipping for critical replacement parts
Fast Delivery
Top Brands
Worldwide Delivery
Secure Transaction
Add To Cart Buy Now

  • Quality Assurance

    OEM Quality Spare Parts.

  • Secure Shopping

    100% Money Back Guarantee.

  • 30-DAY RETURNS

    30 Days After-sales Return.

  • Worldwide Delivery

    Worldwide Fast Shipping.

Display method4-digit 7-segment LED
Operation methodCounter: Count up, Count down, Count up/down
Timer: Count up, Count down
TerminalTerminal block
Power supply100-240VAC~ 50/60Hz
Time operationPOWER ON START
External Power SupplyMax. 12VDC EQ Â±10% 50mA
Signal Input MethodVoltage input(PNP), No-voltage input(NPN)
Max. Counting Speed1, 30, 2k, 5k [cps]
Min. signal Width20ms
Memory ProtectionApprox. 10 years
Setting range0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 99 hour 59 min, 0.1 hour to 999.9 hour, 1 hour to 9999 hour
Control output_TypeIndicator
Protection structureIP40(front panel)
Environment_Ambient temperature-10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
WeightApprox. 175g (approx. 120g)
