HIF3BA-20D-2.54R

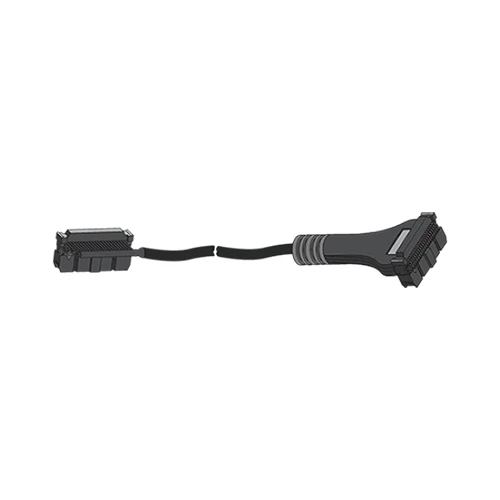

Connector for PLC/Terminal Block, Hirose Connector Socket, 20Pin

TERMINALS

||

AUTONICS

5.00 10

10 Review(s)
$5.32 $4.43 / each
1
HIF3BA-20D-2.54R
AUTONICS
FACTORY SEALED
  • Quality-checked industrial automation parts
  • Secure ordering with responsive customer support
  • Worldwide shipping for critical replacement parts
Fast Delivery
Top Brands
Worldwide Delivery
Secure Transaction

  • Quality Assurance

    OEM Quality Spare Parts.

  • Secure Shopping

    100% Money Back Guarantee.

  • 30-DAY RETURNS

    30 Days After-sales Return.

  • Worldwide Delivery

    Worldwide Fast Shipping.

Connector for PLCHIF3BA-20D-2.54R, HIF3BA-40D-2.54R, HIF3BA-50D-2.54R, D-SUB 37P/S, FCN-367J040-AU/F, MDR102 SERIES(20/50pin)
Connector for terminal blockHIF3BA-20D-2.54R, HIF3BA-40D-2.54R, HIF3BA-50D-2.54R, HIF3BB-50D-2.54R
Applicable cableUL 20276 TWIST 20C/40C/50C
Conductor characteristics7/0.127mm (AWG 28)×20P, 7/0.127mm (AWG 28)×10P, 7/0.127mm(AWG28)×25P
Insulation diameter0.12mm²
Cable diameterØ7.2mm(40C) / 8.9mm(50C)
Rated current?1A
Conductor resistanceMax. 0.223?/m
Insulation voltage500VAC 50/60Hz for 1 min.
Insulation resistanceMin. 15M?/km
Environment_Ambient temperature-15 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
WeightApprox. 66g

The exact weight of the cargo you've scheduled will be measured at the QUANTUM FIRST AUTOMATION office. We will send you an email with a payment link if the weight difference is larger than the shipment amount. The payment link email will include the new weight and the difference amount that must be paid. If you have any queries concerning this procedure, please contact our customer support team at +1-905-625-3500.
