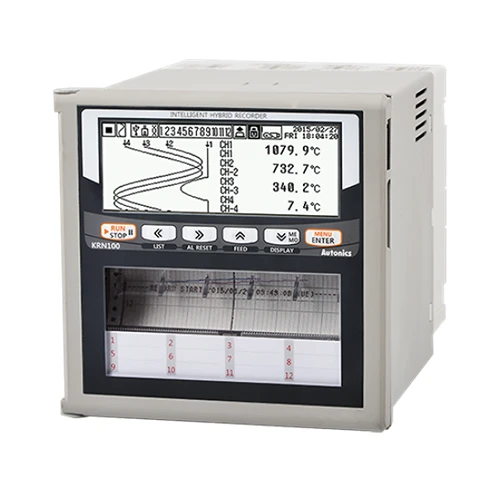

KRN100-08002-01-0S
Recorder, 100mm, 8Channel, 8Alam output, RS485/Ethernet/USB, 100 to 240VAC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Autonics KRN100 General Specifications | ||
| Series | KRN100 | |
| Power voltage | 100-240VAC 50/60Hz | |
| Allowable voltage range | 85 to 110% of rated voltage | |
| Power consumption | Max. 55VA | |
| Screen | LCD type | STN Graphic LCD |
| Resolution | 320×120Pixel | |
| Adjusting brightness | 4-level (OFF/Min/Standard/Max) | |
| Backlight | White LED, 2-level(Temp/Always) | |
| Input channels | 2 / 4 / 6 / 8 / 10 / 12-channel(2-channel/card)-Expandable | |
| Universal input ※1 | Temperature sensor(RTD, thermocouple), analog | |
| Sampling cycle | 1 to 4-channel : 25ms/125ms/250ms, 5 to 12-channel : 125ms/250ms (inner sampling cycle is operation unit time for average movement filter and alarm output function.) ※Max. sampling cycle for TC-R, U, S, T sensor is 50ms. | |
| Recording period in graph mode | 10, 20, 40, 60, 120, 240mm/H | |
| Recording speed accuracy | F.S. ±0.5% | |
| Storage cycle | 1 to 3600sec. (storage interval time to inner log file is 1 sec.) | |
| Inner memory | 512MB | |
| USB memory | User purchased, recognizes max. 32GB, enables to use cable up to 1.5m | |
| Dielectric voltage | 250VAC 50/60Hz for 1min. (power terminal and case) ※ Excepts USB Device and Ethernet | |
| Vibration strength (for convey and storage) and operating vibration | Vibration strength : 10 to 60Hz 4.9m/s2 (each of X, Y, Z axes for 1 hour) Operating vibration : 10 to 60Hz 1m/s2 (each of X, Y, Z axes for 10 min.) | |
| Insulated resistance | Min. 20MΩ(at 500VDC megger) | |
| Noise | ±2kV the square wave noise (pulse width 1㎲) by the noise simulator | |
| Time accuracy | Within ±2min./year (enables to use up to 2100 year) | |
| Mechanism | Ink cartridge | Enables to normal print with going and returning printing max. 5 times within 7 days after opening the unit |
| Ink dry time | Max. 15 minutes | |
| Protection | IP40(for front panel) | |
| Recording paper | 113mm×9m | |
| Environment | Ambient temperature | 0 to 50℃, storage : -20 to 60℃ (without ink cartridge) |
| Ambient humidity | 35 to 85% RH, storage : 35 to 85% RH | |
| Unit weight | Approx. 1.7 to 2.0kg | |
