KT-302HS-0800

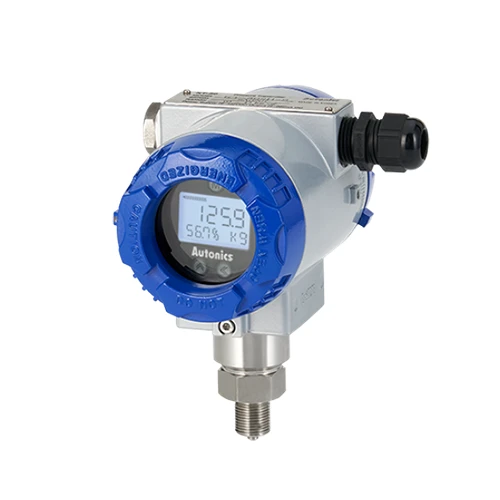

Pressure Transmitter, Sealed Gauge, 0~210kg/cm2, without Mounting bracket, PF3/8(STD)
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Measured materials | Liquid, gas, oil (except corrosive environment of stainless steel type 316) |
|---|---|
| Power supply | 9-45VDC ⎓ |
| Display method | PV display part: 7-segment 5-digit, Parameter display part: 16-segment 8-digit, Bar LED: 52 |
| Display range | -9999 to 99999 |
| Output | DC4-20mA (2-wire) Low-limit 3.8mA, high-limit 22.8mA |
| Accuracy | ±0.3% of F.S. |
| Environment_Ambient temperature | -20 to 70 ?, storage: -40 to 85 ? |
| Environment_Ambient humidity | 0 to 85%RH, storage: 0 to 85%RH |
| Material | Body: aluminum (AlDc.8S), cover O-Ring: buna N, diaphragm: stainless steel 316, connections: stainless steel 316 |
| Explosion class | Ex d IIC T6 |
| Measurement pressure | Gauge pressure |
| Pressure range | 0 to 21MPa |
| Protection structure | IP67(IEC standard) |
| Weight | Approx. 1.7kg (approx. 1.4kg) |
| Pressure port | G3/8 (PF, standard) |
| Mounting bracket | Without bracket |
