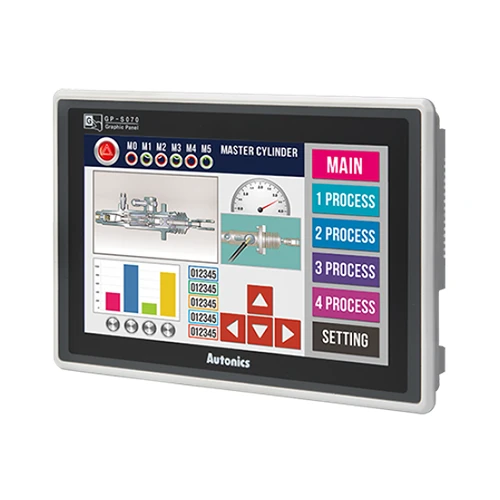

LP-S070-T9D6-C5T
Color LCD Logic Panel(PLC, HMI, I/O), 7.0 inch, RS232C, RS422, Ethernet, IN:16-point, OUT:16-point, Terminal Block Connector, 24VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Display Specifications_LCD Type | 7 inch TFT Color LCD |
|---|---|
| Display Specifications_Resolution | 800×480pixel |
| Display Specifications_Display Area | 152.4×91.44mm |
| Display Specifications_Color | 16,777,216 colors |
| Graphic Drawing Memory | 16MB |
| Touch method | Pressure sensitive type |
| Control Performance_Program Capacity | 8K steps |
| Control Performance_Processing Time | Average: 2?/steps |
| Control Performance_Command | Basic Command: 28 Application Command: 233 |
| Interface_RS232C | 1 EA |
| Interface_RS422 | 1 EA |
| Interface_Ethernet | 1 EA |
| I/O connector type | Terminal block |
| Power supply | 24VDC  |
| Protection structure | IP65F(front panel) |
| Dedicated Software | GP Editor(drawing program), SmartStudio(logic program) |
| Approval |   |
| I/O Configuration | NPN input: 16-point, NPN output: 16-point |
| Interface_USB(Host) | 1 EA |
| Interface_USB(Device) | 1 EA |
| Graphic drawing Perfomance_Language | English, Korean |
| Graphic drawing Perfomance_Text | • Vector font • 6×8, 8×8 ASCII character, high definition numbers • 8×16 ASCII characters, 16×16 character by each country(1 to 8 times bigger for width, 0.5 to 5 times bigger for height) |
| Graphic drawing Perfomance_Number of user screen | 500 pages |
| Graphic drawing Perfomance_Touch switch | Analog touch |
| Real-time controller | RTC embedded |
| Accessories | Fixing bracket: 4, Battery (included) |
| Environment_Ambient temperature | 0 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 540g |
