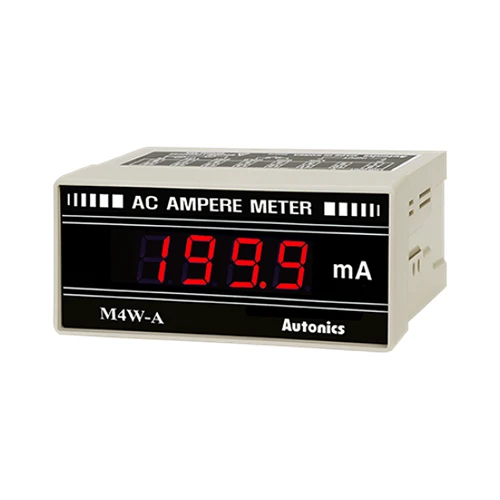

M4W-AA-2
Meter, AC Amps, LED, W96xH48mm, 3 1/2-Digit, 199.9mA AVG Full Scale, 110 & 220 VAC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Max. allowable input | 150% for each input specification (At 400VAC:120%) | ||||
| Power Supply | AC power | 100-240VAC 50/60Hz | 110/220VAC 50/60Hz, 110/220VAC 50/60Hz*1 | ||
| DC power | 5VDC(Except for M5W)*1 24-70VDC(Except for M5W)*1 | 24-70VDC*1 | |||
| Allowable voltage range | 90 to 110% of rated voltage | ||||
| Power Consumption | AC power | 4VA | 5VA | ||
| DC power | 2W | 3W | |||
| Display method | 7 Segment LED display | ||||
| Character height | M4Y, M4W, M5W: 14mm / M4W1P, M4W2P, M4M, M4M1P, M4M2P: 10mm | ||||
| Display Accuracy | AC power | F.S. ±0.5% rdg ±1digit | |||
| DC power | F.S. ±0.2% rdg ±1digit | ||||
| Sampling period | 300ms | ||||
| A/D conversion method | Dual slope integral method | ||||
| Response time | 2sec. (0 to Max.) | ||||
| Display frequency | 2.5 times/sec. | ||||
| Contact capacity | Relay contact output: 250VAC 3A 1c | Relay contact output: 250VAC 3A 1c×2 | |||
| Insulation resistance | 100MΩ (at 500VDC megger) | ||||
| Dielectric strength | 2000VAC 50/60Hz for 1 minute | ||||
| Noise strength | ±1kV the square wave noise (pulse width: 1us) by the noise simulator | ||||
| Vibration | Mechanical | .75mm amplitude at frequency of 10 to 55Hz (for 1 min.) in each X, Y , Z direction for 1 hour | |||
| Malfunction | 0.5mm amplitude at frequency of 10 to 55Hz (for 1 min.) in each X, Y , Z direction for 10 min | ||||
| Shock | Mechanical | 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times | |||
| Malfunction | 100m/s² (approx. 10G) in each X, Y, Z direction for 3 times | ||||
| Relay Life Cycle | Mechanical | Min. 10,000,000 operations | |||
| Malfunction | Min. 100,000 operations (250VAC 3A resistive load) | ||||
| Environment | Ambient temperature | -10 to 50 °C , storage: -20 to 60 °C | |||
| Ambient humidity | 35 to 85%RH, storage: 35 to 85%RH | ||||
