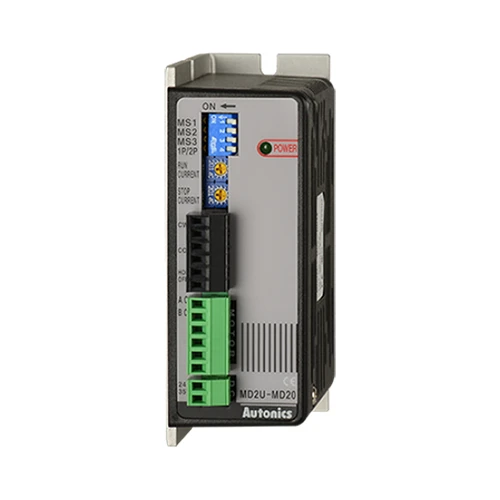

MD2U-MD20
Driver, 2 Phase Stepper, 0.5-2.0A/Phase, 20 - 35VDC, 3A, Unipolar, 40K pps, Microstep
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Operation method | Unipolar constant current drive |
|---|---|
| Applied Motor | 2-phase stepper motor |
| Resolution | FULL STEP(1-division), HALF STEP(2-division), Micro STEP(4, 5, 8, 10, 16, 20-division) |
| Power supply | 24-35VDC  |
| Max. Run Current | 2A/Phase |
| Max. Current Consumption | 3A |
| Number Of Axes | 1-axis |
| Approval |  |
| Input pulse characteristic_pulse width | Min. 10?(CW, CCW), Min. 1ms(HOLD OFF) |
| Input pulse characteristic_Duty Rate | 50%(CW, CCW) |
| Input pulse characteristic_Rising/Falling time | Max. 0.5?(CW, CCW) |
| Input pulse characteristic_Pulse input voltage | [H]: 4-8VDC , [L]: 0-0.5VDC |
| Input pulse characteristic_pulse input current | 4mA(CW, CCW), 10mA(HOLD OFF) |
| Input pulse characteristic_Max. input pulse freq | Max. 50kHz(CW, CCW) |
| Environment_Ambient temperature | 0 to 50℃, storage: -10 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 295g(approx. 180g) |
