MN-2A-020

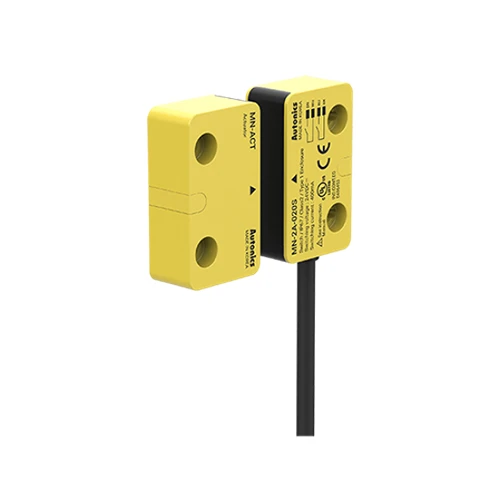

Magnetic Non-contact Switch, 2NO, 2M Cable type, 24VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Contact type | 2 × N.O. |
|---|---|
| Operation distance_OFF→ON | ≥ 5 mm |
| Operation distance_ON→OFF | ≤ 15 mm |
| Weight | Approx. 92.6g(approx. 106.5g) |
| Switching voltage | ≤ 24VDC |
| Switching current | ≤ 400mA |
| Life expectancy | ≥ 1 billion times (with low load) |
| Vibration | 1.0 mm amplitude at frequency of 10 to 55 Hzin each X, Y, Z direction for 2 hours |
| Vibration_Malfunction | 1.0 mm amplitude at frequency of 10 to 55 Hzin each X, Y, Z direction for 10 min |
| Shock | 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times |
| Shock_Malfunction | 300m/s² (approx. 30G) in each X, Y, Z direction in output ON/OFF status for 3 times |
| Ambient temperature | -10 to 55℃, storage: -20 to 60℃ |
| Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP67(IEC standard) |
| Connection | Cable type |
| Material | Body/CAP: PC |
