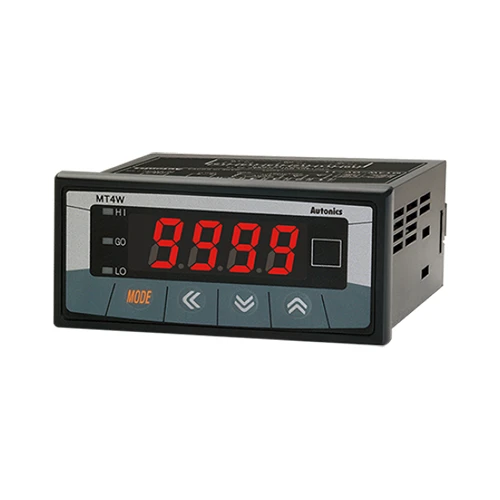

Display method | 4-digit 7-segment LED |
---|---|
Character height | 14.2mm |
Max. display Range | -1999 to 9999 |
Measurement | DC voltage |
Input specification | 0-500V, 0-100V, 0-50V, 0-10V, 0-5V, 0-1V, 0-250mV, 0-50mV |
Power supply | 100-240VAC~ 50/60Hz |
Output_Main Output(Comparative Value) | NPN open collector (HI, GO, LO) |
Output_Sub Output(Display Value) | RS485 communication |
Approval | |
Display accuracy | ⢠23?±5? - F.S. ±0.1% rdg ±2-digit F.S. +0.3% rdg ±3-digit max. only for 5A terminal. ⢠-10? to 50ââÆ - F.S. ±0.5% rdg ±3-digit |
Max. allowable input | 110% F.S. for each measured input range |
A/D conversion method | ?? (Sigma Delta) ADC |
Sampling cycle | 50ms |
Hold function | Includes (external hold function) |
Environment_Ambient temperature | -10 to 50ââÆ, storage: -20 to 60ââÆ |
Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
Insulation type | Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 1kV) |
Weight | Approx. 326g (approx. 211g) |
