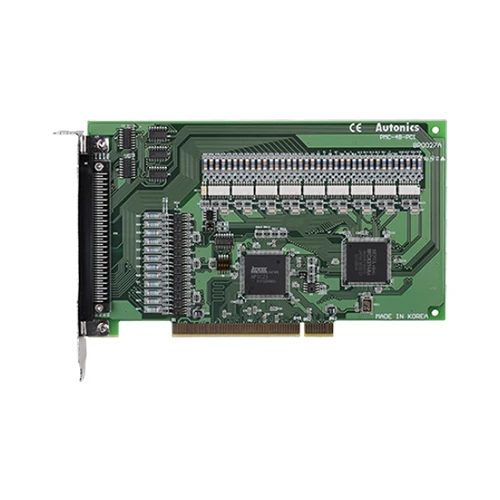

PMC-4B-PCI
Motion Controller, 4-Axis Programmable, Connection Type
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Number Of Axes | 4-axis |
|---|---|
| Type | Board type |
| Main Features | S-shaped acceleration/deceleration, Constant linear velocity, Synchronized operation |
| Input/Output Contact | X, Y, Z, U-axis: 15/8 (general: 0/4) |
| Interpolations | 2/3-axis linear interpolation, arc interpolation, 2/3-axis bit pattern interpolation, constant interpolation |
| Operation mode | User programming |
| In-Position Setting | ABSOLUTE, INCREMENTAL |
| Drive Speed | 1 pps to 4 Mpps |
| Connection method | PCI Slot |
| Communication Protocol | PCI bus |
| Applied Library | C programming language(provided DLL), LabView |
| Power supply | 24VDC  |
| Approval |   |
| 2/3-axis linear interpolation_Range | -2,147,483,648 to 2,147,483,647 for each axis |
| 2/3-axis linear interpolation_Speed | 1 pps to 4 Mpps |
| 2/3-axis linear interpolation_Position accuracy | Max. ±0.5LSB (within all interpolation range) |
| Circular interpolation_Range | -2,147,483,648 to 2,147,483,647 for each axis |
| Circular interpolation_Speed | 1 pps to 4 Mpps |
| Circular interpolation_Position accuracy | Max. ±1 LSB (within all interpolation range) |
| Environment_Ambient temperature | 0 to 45?, storage: -10 to 55℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 654.4g (approx. 100.4g) |
