PRDWT08-2DO

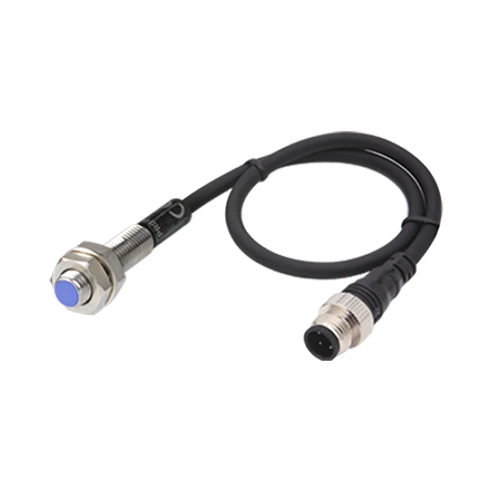

Sensor, Inductive Prox, M8 Round, Shielded, 2mm Sensing, NO, 2 Wire, Cable Connector type, 10-30 VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Wire type and power | DC 2-wire type 12-24VDC  |
|---|---|
| Sensing side diameter | M8 |
| Sensing distance | 2mm |
| Installation | Shield(flush) |
| Standard sensing target | 8×8×1mm(iron) |
| Response frequency | 1kHz |
| Current specification | Leakage current: Max. 0.8mA |
| Control output | Normally Open |
| Material | Case/Nut: Nikel plated Brass (case of PRDâ–¡T08: SUS303), Washer: Nikel plated Iron, Sensing surface: Heat-resistant ABS (PRDâ–¡T08: PBT) Standard cable(Black): Polyvinyl chloride(PVC), Oil resistant cable(Gray): Oil resistant Polyvinyl chloride(PVC) |
| Cable Standard/material | Standard connector |
| Protection structure | IP67 |
| Body length | Standard type |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 15% of sensing distance |
| Residual voltage | Max. 3.5V |
| Weight | Approx. 25g(approx. 45g) |
