PRFDT12-3DO-V

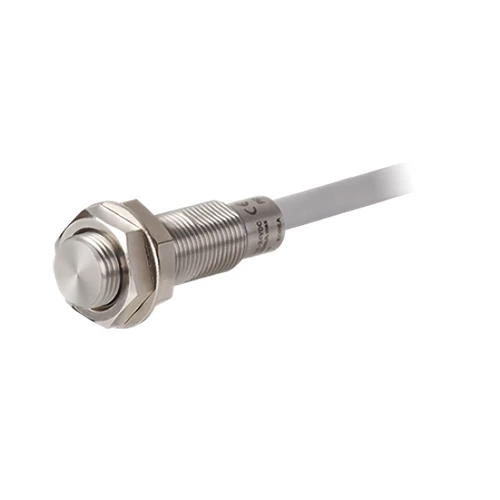

Sensor, Inductive Prox, Full Metal, M12 Round, Shielded, 3mm Sensing, NO, 2 Wire, Oil Resistant Cable Type, 10-30 VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Wire type and power | DC 2-wire type 12-24VDC  (10-30VDC ) |
|---|---|
| Sensing side diameter | 12mm |
| Sensing distance | 3mm |
| Installation | Shield(flush) |
| Standard sensing target | 12×12×1mm(iron) |
| Response frequency | 80Hz |
| Current specification | Leakage current: Max. 0.8mA |
| Control output | DC 2-wire Normally open |
| Material | Case/Nut: stainless steel 303(SUS 303), washer: stainless steel 304(SUS 304), sensing side: stainless steel 303 (SUS 303, thickness of PRFDT12/18: 0.4mm, PRFDT30: 0.5mm), oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Cable Standard/material | Oil resistant cable |
| Protection structure | IP67(IEC standard) |
| Approval |    |
| Body length | Standard type |
| Environment_Ambient temperature | -25 to 70℃, storage: -25 to 70? |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 15% of sensing distance |
| Residual voltage | Max. 3.5V |
| Weight | Approx. 110g(approx. 83g) |
