PRFDWT18-7DO-IV

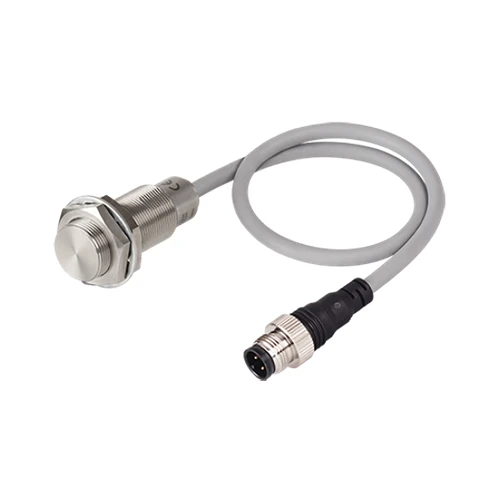

Sensor, Inductive Prox, Full Metal, M18 Round, Shielded, 7mm Sensing, NO, 2 Wire, IEC Standard, Oil Resistant Cable Connector Type, 10-30 VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Wire type and power | DC 2-wire type 12-24VDC  (10-30VDC ) |
|---|---|
| Sensing side diameter | 18mm |
| Sensing distance | 7mm |
| Installation | Shield(flush) |
| Standard sensing target | 30×30×1mm(iron) |
| Response frequency | 80Hz |
| Current specification | Leakage current: Max. 0.8mA |
| Control output | DC 2-wire Normally open |
| Material | Case/Nut: stainless steel 303 (SUS 303), washer: stainless steel 304 (SUS 304), sensing side: stainless steel 303 (SUS 303, thickness of PRFDWT12/18: 0.4mm, PRFDWT30: 0.5mm), oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Cable Standard/material | Oil resistant cable(IEC standard) |
| Protection structure | IP67(IEC standard) |
| Approval |    |
| Body length | Standard type |
| Environment_Ambient temperature | -25 to 70℃, storage: -25 to 70? |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 15% of sensing distance |
| Residual voltage | Max. 3.5V |
| Weight | Approx. 132g(approx. 97g) |
