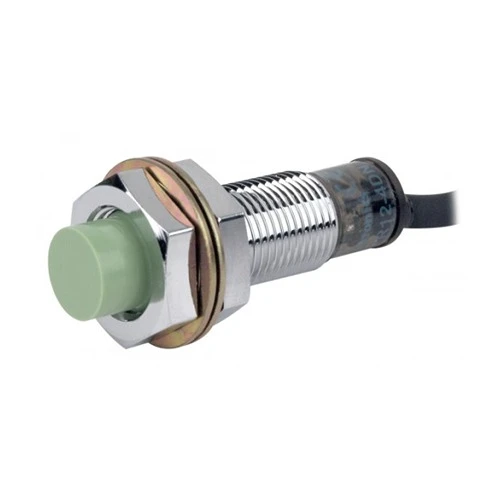

PRT12-4DO-5M
Sensor, Inductive Prox, M12 Round, Non Shielded, 4mm Sensing, NO, 2 Wire, 5M Cable, 10-30 VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Diameter of sensing side | 12mm |
| Sensing distance | 4mm |
| Cable | 5m |
| Installation | Non-shield (non-flush) |
| Hysteresis | Max. 10% of sensing distance |
| Standard sensing target | 12×12×1mm (iron) |
| Setting distance | 0 to 2.8mm |
| Power supply (operating voltage) | 12-24VDCᜡ (10-30VDCᜡ) |
| Leakage current | Max. 0.6mA |
| Response frequency | 500Hz |
| Residual voltage | Max. 3.5V (non-polarity type is max. 5V) |
| Affection by Temp. | Max. ±10% for sensing distance at ambient temperature 20℃ (for PRT08 Series: ±20% max.) |
| Control output | 2 to 100mA |
| Insulation resistance | Over 50MΩ (at 500VDC megger) |
| Dielectric strength | 1,500VAC 50/60Hz for 1 min |
| Vibration | 1mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours |
| Shock | 500m/s² (approx. 50G) in each X, Y, Z direction for 3 times |
| Indicator | Operation indicator: Red LED |
| Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection circuit | Surge protection circuit, output short over current protection circuit |
| Protection structure | IP67 (IEC standard) |
| Material | Case/Nut: Nickel plated brass, Washer: Nickel plated iron, Sensing surface: Polybutylene terephthalate, Standard cable (black): Polyvinyl chloride (PVC), Oil resistant cable (gray): Oil resistant polyvinyl chloride (PVC) |
| Approval | CE |
| Weight | Approx.84g (approx. 72g) |
