PRWL08-2DN

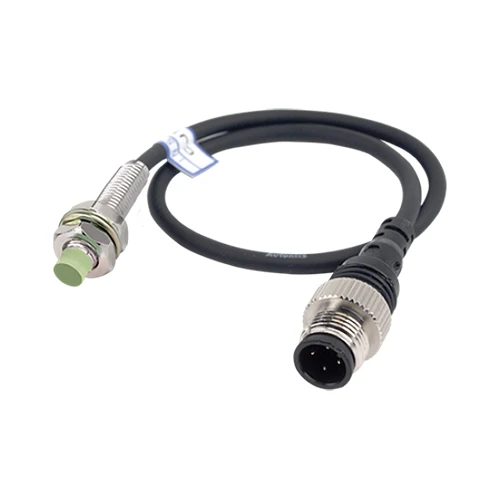

Sensor, Inductive Prox, M8 Round Long, Non Shielded, 2mm Sensing, NPN, NO, 3 Wire, Cable Connector type, 10-30 VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Wire type and power | DC 3-wire type 12-24VDC  |
|---|---|
| Sensing side diameter | M08 |
| Sensing distance | 2mm |
| Installation | Non-flush |
| Standard sensing target | 8×8×1mm(iron) |
| Response frequency | 1kHz |
| Current specification | Current consumption: Max. 10mA |
| Control output | NPN Normally Open |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Ø 8 mm: SUS303), washer: Nikel plated Iron, sensing side: polybutylene terephthalate, standard cable (black): polyvinyl chloride (PVC), oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Cable Standard/material | Standard connector |
| Protection structure | IP67(IEC standard) |
| Body length | Long body |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 15% of sensing distance |
| Residual voltage | Max. 2V |
