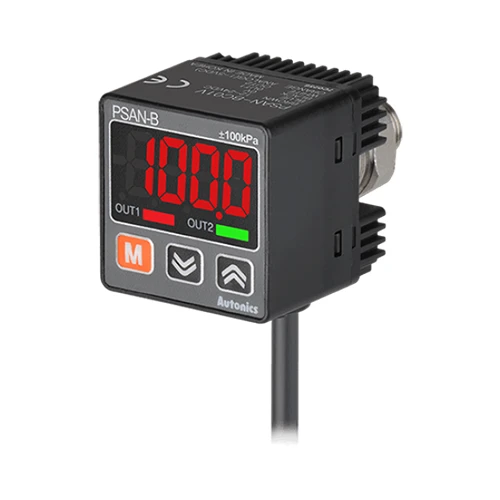

PSAN-BC01PH-9/16-18UNF
Pressure Sensor, Fluid type, Compound pressure, Cable Type, -101.3 kPa to 100.0kPa, PNP open collector output, Hold/Auto shift input, Rear Port 9/16-18UNF, 12-24VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Applicable fluid | (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L |
|---|---|
| Pressure port direction | Rear fitting |
| Pressure port | 9/16-18UNF |
| Connection type | Cable type(cable type cable: 3m) |
| Pressure type | Compound pressure |
| Rated pressure range | -101.3 to 100.0kPa |
| Display pressure unit | kPa, kgf/cm², bar, psi, mmHg, inHg, mmH?O |
| Control output_PNP open collector | PNP open collector |
| Option input/output | Hold/Auto shift input |
| Power supply | 12-24VDC ⎓ ±10%(ripple P-P: max. 10%) |
| Current consumption | Voltage output type: Max. 50mA Current output type: Max. 75mA |
| Protection structure | IP65 |
| Approval |  |
| Control output_Hysteresis | Min. display interval |
| Control output_Repeat error | ±0.2% F.S. ±Min. display interval |
| Control output_Response time | Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 30 to 80% RH, storage: 30 to 80% RH |
| Material | Front case: Polycarbonate, Rear case: Polyamide 6, Pressure port: SUS304/SUS316L |
| Weight | Approx. 167g(approx. 90g) |
