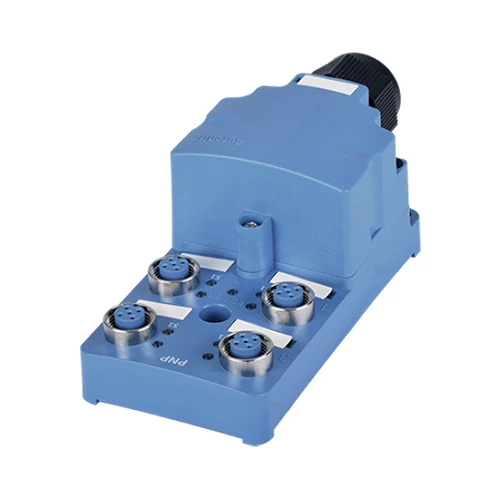

PT4-S3DP5
Connection Box, 4 Connector, Spring Termianl Type, DC 3 Wire(1 Signal), PNP, 5 Femal pin, Blue
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Number of ports | 4-port |
|---|---|
| Input logic | PNP |
| Output specification | 1-signal (DC 3-wire type) |
| Power supply | 12-24VDC ⎓ |
| Rated current | 2A(per signal), 2A(per port), 7A(total) |
| Connection life cycle | Min. 200 operations |
| Number of M12 connector pins | 5-pin |
| Case color | Blue |
| Hood cover | Including hood cover |
| Protection structure | IP67(waterproof cover), IP52(protection cover) |
| Approval |  |
| Connection method for external signal | Spring terminal type |
| Material | Case: Polybutylene terephthalate (G15%), Name plate: Polycarbonate, Cover: Polybutylene terephthalate(G15%), Cover nut: Polyamide 6 (G15%) |
| Environment_Ambient temperature | -25 to 75, storage: -30 to 80 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 270g (approx. 140g) |
