BANNER-ENGINEERING

    Out Of Stock

    QS18VP6LAF250Q5

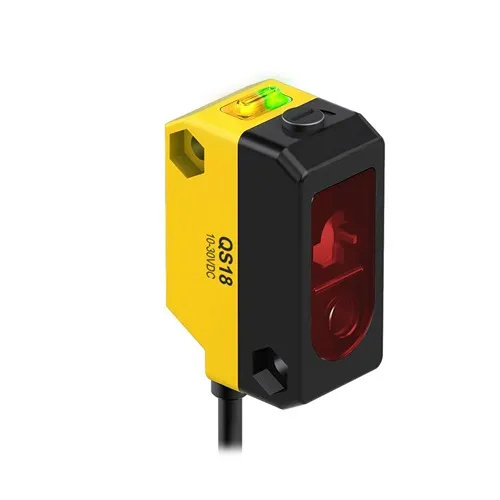

    World-Beam Qs18 Laser Adjustable Field; Class 2; Rng: 20 Mm-Cutoff Pt (Adj Btwn 50-250 Mm); Input:; Output: Pnp; 150 Mm (6 In) M12 Pigtail Qd;


    $296.35 $246.96 / each
    1
    QS18VP6LAF250Q5
    BANNER-ENGINEERING
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    IP Rating
    IP67
    Cable Length (m)
    0.15
    Sensing Beam
    Visible Red Laser
    NEMA / UL Type Rating
    NEMA 4X
    Power
    DC
    Sensing Mode (General)
    Proximity
    Sensing Mode (Detailed)
    Background Suppression (Adjustable)
    Housing Style
    Rectangular
    Primary Housing Material
    ABS
    Laser Classification
    Class 2
    Small Visible Spot
    Laser
    Input Output
    Discrete
    Max Sensing Distance (mm)
    250
    Outputs
    PNP
    Power Supply/Supply Voltage
    10-30 V dc
    Connection
    Pigtail QD
    Quick Disconnect Type
    M12
    Min Op. Temp. (°C)
    -10
    Operation
    Light/Dark Operate
    Max Op. Temp. (°C)
    50
    Output response time (ms)
    0.7
    Sensing Beam Wavelength
    658
    Delay at Power-up (ms)
    200
    Repeatability (µs)
    130
    Number of Pins
    4
    Max Op. Relative Humidity [%]
    95% @ 50°C
    Lens Material
    Acrylic
    Adjustments
    Mechanical Screw
    Indicator
    LEDs
    Feature: Audible
    No
    Feature: Quick Disconnect
    Yes
