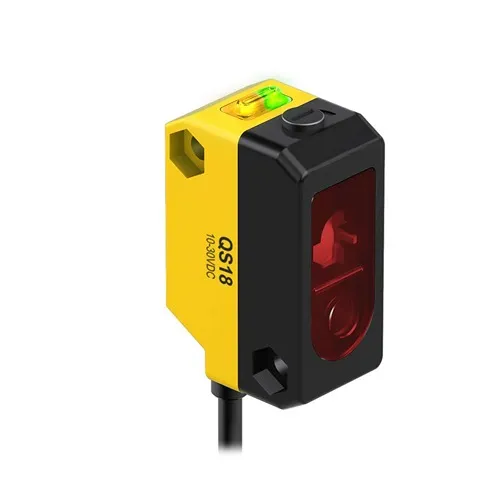

QS18VP6LAFQ5

World-Beam Qs18 Series: Laser Adjustable-Field; Range: Cutoff Adjusts Between 30-150 Mm; 10-30 V Dc; Output: Complementary Solid-State Pnp; 150 Mm (6 In) M12 Pigtail Qd;


$234.86 $195.72 / each
1
QS18VP6LAFQ5
BANNER-ENGINEERING
FACTORY SEALED
QS18VP6LAFQ5.pdf

  • Quality Assurance

    OEM Quality Spare Parts.

  • Secure Shopping

    100% Money Back Guarantee.

  • 30-DAY RETURNS

    30 Days After-sales Return.

  • Worldwide Delivery

    Worldwide Fast Shipping.


IP Rating
IP67
Cable Length (m)
0.15
Sensing Beam
Visible Red Laser
NEMA / UL Type Rating
NEMA 4X
Power
DC
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Background Suppression (Adjustable)
Housing Style
Rectangular
Primary Housing Material
ABS
Laser Classification
Class 1
Small Visible Spot
Laser
Input Output
Discrete
Max Sensing Distance (mm)
150
Outputs
PNP
Power Supply/Supply Voltage
10-30 V dc
Connection
Pigtail QD
Quick Disconnect Type
M12
Min Op. Temp. (°C)
-10
Operation
Light/Dark Operate
Max Op. Temp. (°C)
50
Output response time (ms)
0.7
Sensing Beam Wavelength
650
Delay at Power-up (ms)
200
Repeatability (µs)
130
Number of Pins
4
Max Op. Relative Humidity [%]
95% @ 50°C
Lens Material
Acrylic
Adjustments
Mechanical Screw
Indicator
LEDs
Feature: Audible
No
Feature: Quick Disconnect
Yes
