CARLO-GAVAZZI

    In Stock (1 Available)

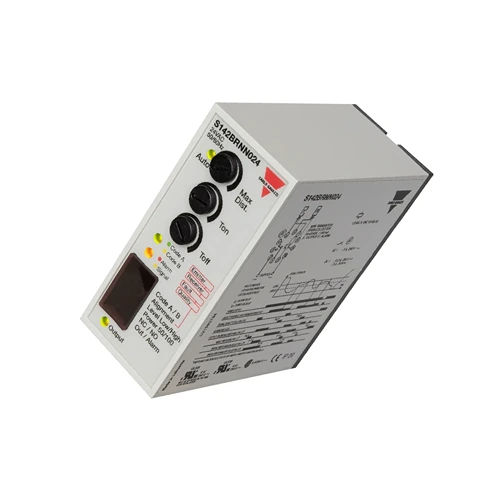

    S142BRNN924

    Photoelectric Amplifier 1CH 2NPN SPDT TIMER, μ-Processor controlled, Rated operational voltage: 24 VAC/DC, 24 VAC, 115 VAC or 230 VAC


    $303.41 $252.84 / each
    1
    S142BRNN924
    CARLO-GAVAZZI
    FACTORY SEALED
    S142BRNN924.pdf
    Add To Cart Buy Now

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    SPECIFICATIONS

    Emitter power
    Power
    Settings on DIP switch no 4,
    50 % or 100 % range
    Sensitivity adjustment
    Manual
    240º potentiometer
    Automatic (Auto LED ON)
    Completely counterclockwise setting on the potentiometer
    Maximum sensing rangeMaximum range shown in settings of 100% on photoelectric switch datasheets
    Voltage for rated insulation (UI)250 VAC
    Voltage dielectric(contacts / electronics)>2.0 KVAC (rms)
    Volts of rated impulse withstand.electronics) (IEC 664)/ 4 kV (1.2/50 μS) (contacts
    Operating period (f)
    Light / Dark ratio 1:1

    Switch output5 Hz min delay
    Output of a transistor5 Hz min delay

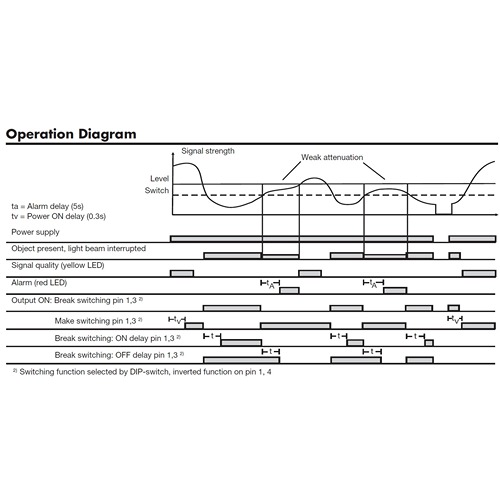

    Time to response
    OFF-ON (tON)
    0.1 – 10 s
    ON-OFF (tOFF)
    0.1 – 10 s

    • A single set of MOF, MMF, and MNF photoelectric via beam sensors with processor-controlled amplifier.

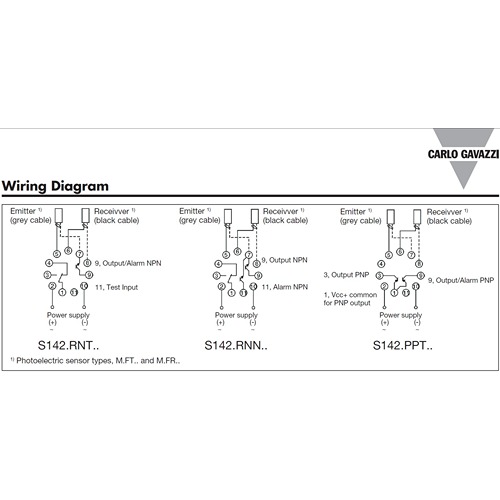

    • They use a circular 11-pin plug for simple connections.
    • Alarm output, NPN or PNP transistor output, or 8 A SPDT relay output. diagnostics for running sensor tests.
    • LED alignment assistance or a changing warning output.
    • Dirt buildup level indicator. Emitter power regulation may be manual or automated.
    • For high neighbor immunity, there are two emitter codes available.
    • Adjustable ON/OFF delay of up to 10 seconds.
