BANNER-ENGINEERING

    Factory Stock (6 Available)

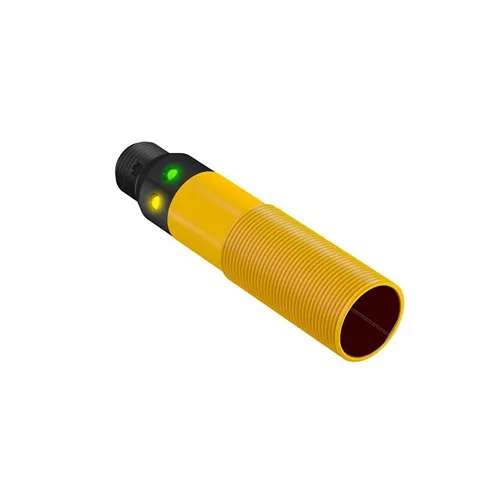

    S18SP6DQ

    Ez-Beam S18 Series: Diffuse; Range: 100 Mm; Input: 10-30 V Dc; Output: Complementary Pnp; 4-Pin M12 Integral Qd;


    $71.57 $59.64 / each
    1
    S18SP6DQ
    BANNER-ENGINEERING
    FACTORY SEALED
    S18SP6DQ.pdf
    Add To Cart Buy Now

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    IP Rating
    IP67, IP69K
    Sensing Beam
    Infrared LED
    NEMA / UL Type Rating
    NEMA 4X
    Power
    DC
    Sensing Mode (General)
    Proximity
    Sensing Mode (Detailed)
    Diffuse
    Housing Style
    Barrel
    Primary Housing Material
    Thermoplastic
    Input Output
    Discrete
    Max Sensing Distance (mm)
    100
    Outputs
    PNP
    Power Supply/Supply Voltage
    10-30 V dc
    Connection
    Integral QD
    Quick Disconnect Type
    M12
    Min Op. Temp. (°C)
    -40
    Operation
    Light/Dark Operate
    Max Op. Temp. (°C)
    70
    Output response time (ms)
    3
    Special Feature: Intrinsically Safe
    No
    Special Feature: Remote Teach
    No
    Special Feature: Water Detection
    No
    Delay at Power-up (ms)
    100
    Repeatability (µs)
    750
    Number of Pins
    4
    Max Op. Relative Humidity [%]
    90% @ 50°C
    Lens Material
    Acrylic
    Adjustments
    N/A
    Barrel Diameter (mm)
    18
    Indicator
    LEDs
    Feature: Washdown Rated
    Yes
    Feature: Ecolab Certified
    Yes
    Feature: Encapsulated
    Yes
    Feature: Audible
    No
    Feature: Quick Disconnect
    Yes
    Feature: Health/Marginal Signal Output
    Yes
