AUTONICS

    SFLA30-66

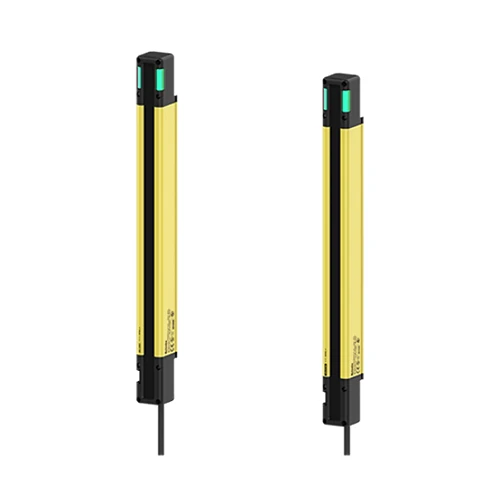

    Safety Light Curtains, Advanced type, Through-beam, 15M Sensing distance, 66pcs & 25mm Optical axis pitch, 1,643mm length, 24VDC


    $4,071.45 $3,392.87
    1
    SFLA30-66
    0
    AUTONICS
    Brand New
    12 Months
    Out Of Stock

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Sensing typeThrough-beam type
    Light sourceInfrared LED(855nm)
    Effective aperture angle(EAA)Within ± 2.5 ° when the sensing distance is greater than 3 m for both emitter and receiver.
    Sensing distanceShort - Long mode (setting switch or atLightCurtain)
    Short mode0.2 to 8 m
    Long mode0.2 to 15 m
    Detection capabilityØ 30 mm (hand-body)
    Sensing targetOpaque
    Protective height1643 mm
    Number of optical axes66
    Optical axis pitch25mm
    Series connectionMax. 4 SET (≤ 400 optical axes)
    Power supply24 VDC ±20 %(ripple P-P: ≤10 %)
    Current consumptionEmitter: ≤106mA, receiver: ≤181mA
    Safety related output: OSSD outputNPN or PNP open collector
    Load voltage : ON - 24 VDC (except for the residual voltage), OFF - 0 VDC
    Load current : ≤ 300 mA
    Residual voltage : ≤ 2 VDC(except for voltage drop due to wiring)
    Load capability: ≤ 2.2 ㎌
    Leakage current: ≤ 2.0 mA
    Wire resistance of load: ≤ 2.7 Ω
    Auxiliary output(AUX 1/2)NPN or PNP open collector
    Load voltage: ≤ 24 VDC, Load current: ≤ 100 mA,
    Residual voltage: ≤ 2 VDC (except for voltage drop due to wiring)
    Lamp output(LAMP 1/2)NPN or PNP open collector
    Load voltage: ≤ 24 VDC, Load current: ≤ 300 mA
    Protection circuitReverse power polarity, reverse output polarity, output short-circuit over-current protection
    Safety-related functionsInterlock (reset hold), external device monitoring (EDM), muting/override, Blanking (fixed blanking, floating blanking), reduced resolution
    General functionsSelf-test, alarm for reduction of incident light level, mutual interference prevention
    Others functionsChange of sensing distance, switching to NPN or PNP, external test (light emission stops), auxiliary output (AUX 1, 2), lamp output (LAMP1, 2)
    Synchronization typeTiming method by RS485 synchronous line
    Insulation resistanceOver 20MΩ (at 500VDC megger)
    Noise immunityThe square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC
    Dielectric strength1,000VAC 50/60Hz for 1 minute
    Vibration10 mm double amplitude at frequency of 5 to 150 Hz, 10 sweeps ni each X, Y, Z direction
    Shock250 m/s² (≈ 25 G), pulse width 6 ms in each X, Y, Z direction for 100 times
    Environment_Ambient illuminationSunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
    Ambient temperature-30 to 60 ℃, storage: -30 ~ 70 ℃ (no freezing or condensation)
    Ambient humidity35 to 85 %RH, storage: 35 to 95 %RH (non-freezing or non-condensation)
    Protection structureIP65, IP67(IEC Standard), IP67G (JEM Standard), IP69K (DIN Standard)
    MaterialCase: Aluminum, Front cover and sensing part: Polymethyl methacrylate, End cap: polycarbonate, Power I/O cable and connector cable: polyurethane (PUR) or polyvinyl chloride (PVC), Y type connector cable: polyvinyl chloride (PVC), lamp output cable and series connector cable: polyurethane (PUR), Top / Bottom adjustable bracket and Top / Bottom bracket: SUS304, Side adjustable bracket and Side bracket: nickel plated Zn
    International standardsUL 508, CSA C22.2 No. 14, ISO 13849-1 (PL e, Cat. 4), ISO 13849-2 (PLe, Cat. 4), UL 61496-1 (Type 4, ESPE), UL 61496-2 (Type 4, AOPDs), IEC/EN 61496-1 (Type 4, ESPE), IEC/EN 61496-2 (Type 4, AOPDs), IEC/EN 61508-1~-7 (SIL 3), IEC/EN 62061 (SIL CL 3)
