SP-0305

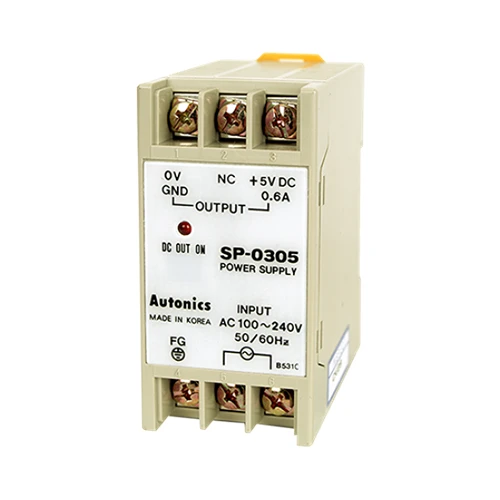

Power Supply, Switching, 5 VDC-3 Watt Output, 100-240 VAC Input

SWITCHES

||

AUTONICS

5.00 10

10 Review(s)
$54.02 $45.02 / each
1
SP-0305
AUTONICS
FACTORY SEALED
  • Quality-checked industrial automation parts
  • Secure ordering with responsive customer support
  • Worldwide shipping for critical replacement parts
Fast Delivery
Top Brands
Worldwide Delivery
Secure Transaction

  • Quality Assurance

    OEM Quality Spare Parts.

  • Secure Shopping

    100% Money Back Guarantee.

  • 30-DAY RETURNS

    30 Days After-sales Return.

  • Worldwide Delivery

    Worldwide Fast Shipping.

Output power3W
Input Voltage100-240VAC~ 50/60Hz
Permissible voltage85-264VAC~50/60Hz
Output_Voltage5VDC EQ
Output_Current0.6A
Mounting typeDIN Rail/Using Bolts
ProtectionOver-Current/Output Short-Circuit
Input_Frequency50/60Hz
Input_Efficiency67~74%
Input_Current consumptionMax. 0.15A
Output type_Voltage adjustment rangeMax. ±5%
Output type_RippleMax. 5%
Output type_Voltage fluctuation ratioMax. 0.5% (at 85-264VAC~ 100% load)
Environment_Ambient temperature-10 to 50℃, storage: -20 to 70℃
Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
WeightApprox. 100g
