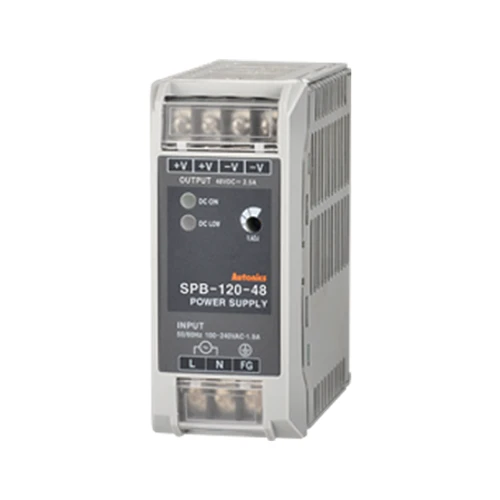

SPB-120-48
Power Supply, Din Rail mounting, Switching, 48 VDC output ,120 Watts, 2.5 Amp 100-240 VAC Input
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Output power | 120W |
|---|---|
| Input Voltage | 100-240VAC~ 50/60Hz |
| Permissible voltage | 85-264VAC~ 50/60Hz, 120-370VDC  |
| Output_Voltage | 48VDC |
| Output_Current | 2.5A |
| Mounting type | DIN Rail |
| Protection | Over-Current/Over-Voltage/Inrush Current/Output Short-Circuit/Remote Control/Output Low-Voltage Indicate/Power Factor Correction/Terminal Cover |
| Input_Frequency | 50/60Hz |
| Input_Efficiency_100VAC~ | 0.85 |
| Input_Efficiency_240VAC~ | 0.88 |
| Input_Power factor | Min. 0.9 |
| Input_Current consumption_100VAC~ | 1.43A |
| Input_Current consumption_240VAC~ | 0.61A |
| Output type_Voltage adjustment range | Max. ±5% |
| Output type_Input fluctuation ratio | Max. ±0.5% |
| Output type_Load fluctuation ratio | Max. ±1% |
| Output type_Ripple&Ripple noise | Max. ±1% |
| Protection structure | IP20(IEC standard) |
| Environment_Ambient temperature | -10 to 50℃, storage: -25 to 65℃ (surrounding air temp.: Max. 40℃) |
| Environment_Ambient humidity | 25 to 85%RH, storage: 25 to 90%RH |
| Weight | Approx. 570g(approx. 466g) |
