    AUTONICS

    spr1-225nff AUTONICS


    spr1-225nff
    left swipe Rotate image right swipe

    Out Of Stock

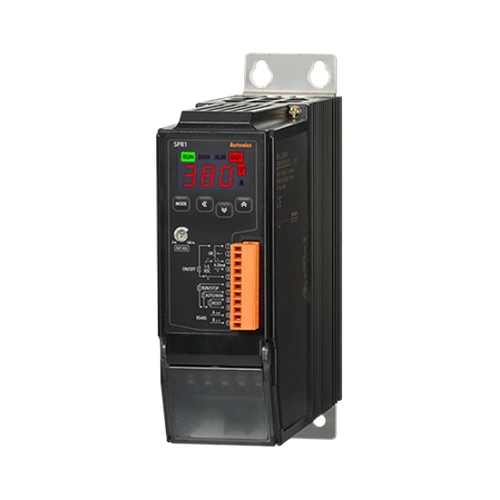

    SPR1-225NFF

    Power Controller, Single-phase, LED Display, Load 220VAC/25A, Alam, Feedback control (Normal/ constant current / constant voltage / constant power), Fuse, 100-240VAC

    CONTROLLERS

    ||

    AUTONICS

    5.00 10

    10 Review(s)
    $371.02 $309.18 / each
    1
    SPR1-225NFF
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.

    Control phaseSingle-phase
    Rated load voltage220VAC~
    Rated load current25A
    Control inputᆞAuto control: DC4-20mA, 1-5VDC EQ, ON/OFF contact (no-voltage input), pulse voltage (5-12VDC EQ) ᆞManual control: outside adjuster (10kΩ), inside adjuster (output limit)
    Power supply100-240VAC~ 50/60Hz
    Min. load current1A
    Allowable voltage range90 to 110% of rated voltage
    Power consumptionMax. 7VA
    Display method3-digit 7-segment LED
    IndicatorᆞOperation indicator/Manual control indicator: green LED
    ᆞAlarm indicator/output indicator/unit (V, A) indicator: red LED
    Control methodᆞPhase control: normal control mode, constant current/constant voltage/constant power feedback control mode
    ᆞCycle control: fixed cycle control mode, variable cycle control mode
    ᆞON/OFF control
    Applied loadᆞPhase control, ON/OFF control: resistance load, inductive load
    ᆞCycle control: resistance load
    Digital inputsRUN/STOP switching, AUTO/MAN switching, RESET
    Output_Alarm250VAC~ 3A, 30VDC EQ 3A, 1c resistive load
    Output rangePhase control: 0 to 98%, Cycle control: 0 to 100%, ON/OFF control: 0%, 100%
    Output accuracyᆞNormal control: within ±10% F.S. of rated load voltage
    ᆞConstant current feedback control: within ±3% F.S. of rated load current
    ᆞConstant voltage feedback control: within ±3% F.S. of rated load voltage
    ᆞConstant power feedback control: within ±3% F.S. of rated load power
    Setting typeBy front keys, by communication
    FunctionOutput limit (OUT ADJ), AUTO/MAN selection, control method selection, RESET, SOFT START, SOFT UP/DOWN, output high/low limit, input correction, input slope correction, monitoring (control input, load voltage/current/power/resistance, power supply frequenc
    Function_AlarmOvercurrent alarm, overvoltage alarm, fuse break alarm, SCR error alarm, heater break alarm, heatsink overheat alarm
    Cooling methodNatural cooling
    Insulation resistanceOver 200MΩ (at 500VDC megger)
    Dielectric strength2,000VAC~ 50/60Hz for 1 min (between input terminals and power terminals)
    Output leakage current10mArms
    Noise immunity±2kV the square wave noise (pulse width: 1㎲) by the noise simulator
    Memory Protection≈ 10 years (non-volatile semiconductor memory type)
    Vibration0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours
    Vibration_Malfunction0.5mm amplitude at frequency of 5 to 55Hz in each X, Y, Z direction for 10 min
    Environment_Ambient temperature-10 to 55℃, storage: -20 to 80℃
    Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
    Accessories11-pin connector
    WeightApprox. 1.6kg (approx. 1.3kg)
