AUTONICS

    Out Of Stock

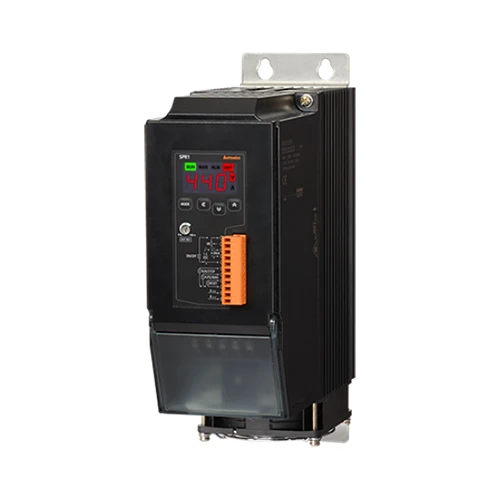

    SPR1-3150TFN

    Power Controller, Single-phase, LED Display, Load 380VAC/150A, Alam+RS485 output, Feedback control (Normal/ constant current / constant voltage / constant power), Non-fuse, 100-240VAC


    $626.35 $521.96 / each
    1
    SPR1-3150TFN
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Control phaseSingle-phase
    Rated load voltage380VAC~
    Rated load current150A
    Control inputᆞAuto control: DC4-20mA, 1-5VDC EQ, ON/OFF contact (no-voltage input), pulse voltage (5-12VDC EQ) ᆞManual control: outside adjuster (10kΩ), inside adjuster (output limit)
    Power supply100-240VAC~ 50/60Hz
    Min. load current1A
    Allowable voltage range90 to 110% of rated voltage
    Power consumptionMax. 12VA
    Display method3-digit 7-segment LED
    IndicatorᆞOperation indicator/Manual control indicator: green LED
    ᆞAlarm indicator/output indicator/unit (V, A) indicator: red LED
    Control methodᆞPhase control: normal control mode, constant current/constant voltage/constant power feedback control mode
    ᆞCycle control: fixed cycle control mode, variable cycle control mode
    ᆞON/OFF control
    Applied loadᆞPhase control, ON/OFF control: resistance load, inductive load
    ᆞCycle control: resistance load
    Digital inputsRUN/STOP switching, AUTO/MAN switching, RESET
    Output_Alarm250VAC~ 3A, 30VDC EQ 3A, 1c resistive load
    Output_CommunicationRS485 communication output (Modbus RTU method)
    Output rangePhase control: 0 to 98%, Cycle control: 0 to 100%, ON/OFF control: 0%, 100%
    Output accuracyᆞNormal control: within ±10% F.S. of rated load voltage
    ᆞConstant current feedback control: within ±3% F.S. of rated load current
    ᆞConstant voltage feedback control: within ±3% F.S. of rated load voltage
    ᆞConstant power feedback control: within ±3% F.S. of rated load power
    Setting typeBy front keys, by communication
    FunctionOutput limit (OUT ADJ), AUTO/MAN selection, control method selection, RESET, SOFT START, SOFT UP/DOWN, output high/low limit, input correction, input slope correction, monitoring (control input, load voltage/current/power/resistance, power supply frequenc
    Function_AlarmOvercurrent alarm, overvoltage alarm, fuse break alarm, SCR error alarm, heater break alarm, heatsink overheat alarm
    Cooling methodForced air cooling (with the cooling fan)
    Insulation resistanceOver 200MΩ (at 500VDC megger)
    Dielectric strength2,000VAC~ 50/60Hz for 1 min (between input terminals and power terminals)
    Output leakage current10mArms
    Noise immunity±2kV the square wave noise (pulse width: 1㎲) by the noise simulator
    Memory Protection≈ 10 years (non-volatile semiconductor memory type)
    Vibration0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours
    Vibration_Malfunction0.5mm amplitude at frequency of 5 to 55Hz in each X, Y, Z direction for 10 min
    Environment_Ambient temperature-10 to 55℃, storage: -20 to 80℃
    Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
    Accessories11-pin connector
    WeightApprox. 3.2kg (approx. 2.8kg)
