Out Of Stock

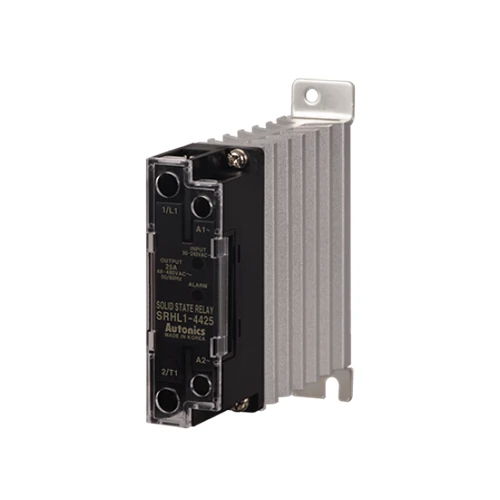

    SSR, Intergrated Heatsink, Single phase, Left-Right Terminal type ,Input 90-240VAC, Load 48-480VAC, 25A, Zero cross

    $52.93 $44.11 / each

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.

    Control phaseSingle-phase
    Mounting typePanel, DIN rail
    Rated input voltage90-240VAC~
    Rated load voltage48-480VAC~
    Dielectric strength• Input-output: 2500VAC 50/60Hz for 1 min
    • Input/output-case: 4000VAC 50/60Hz for 1 min
    Rated load current25A
    FunctionZero cross turn-on
    Alarm(Overheat Prevention)Alarm indicator
    Environment_Ambient temperature-30 to 70℃, storage: -30 to 100℃
    (The rated load current capacity is different depending on ambient temperature. Refer to '▣ SSR Derating Curve'.)
    Environment_Ambient humidity45 to 85% RH, storage: 45 to 85% RH
    WeightApprox. 270g(approx.192g)
