AUTONICS

tal-b4sk8c AUTONICS

tal-b4sk8c
left swipe Rotate image right swipe

Out Of Stock

TAL-B4SK8C

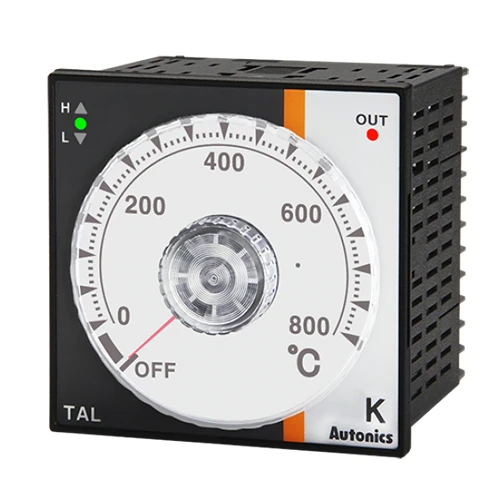

Temp Control, 1/4 DIN, Analog, PID Control, SSR Output, K Thermocouple, 800 C, 100-240 VAC

TEMP. CONTROL

||

AUTONICS

5.00 10

10 Review(s)
$89.66 $74.72 / each
1
TAL-B4SK8C
AUTONICS
FACTORY SEALED
  • Quality-checked industrial automation parts
  • Secure ordering with responsive customer support
  • Worldwide shipping for critical replacement parts
Fast Delivery
Top Brands
Worldwide Delivery
Secure Transaction

  • Quality Assurance

    OEM Quality Spare Parts.

  • Secure Shopping

    100% Money Back Guarantee.

  • 30-DAY RETURNS

    30 Days After-sales Return.

  • Worldwide Delivery

    Worldwide Fast Shipping.

SizeDIN W96×H96mm
Display methodNon-display
Control methodON/OFF control
PID control
Input specificationThermocouple: K(CA)
Temperature unit℃
Setting range0~800
Sampling cycle100ms
Control outputSSR drive(12VDC EQ) [ON/OFF]
Power supply100-240VAC~ 50/60Hz
Setting typeDial setting
Setting accuracyF.S. ±2%(room temperature 23℃±5℃)
Environment_Ambient temperature-10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
Insulation typeDouble insulation or reinforced insulation(mark: INS, dielectric strength between the measuring input part and the power part: 2kV)
WeightApprox. 232g(approx. 147g)

The exact weight of the cargo you've scheduled will be measured at the QUANTUM FIRST AUTOMATION office. We will send you an email with a payment link if the weight difference is larger than the shipment amount. The payment link email will include the new weight and the difference amount that must be paid. If you have any queries concerning this procedure, please contact our customer support team at +1-905-625-3500.
