AUTONICS

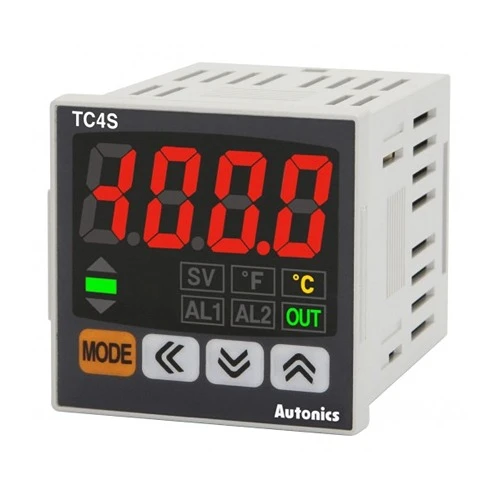

    TC4S-N2N

    Temp Indicator, DIN W48 X H48mm, Single display 4 Digit, PID Control, without control output, No Alarm Output, 24VAC/ 24-48VDC


    $108.78 $90.65
    1
    TC4S-N2N
    0
    AUTONICS
    Brand New
    12 Months
    Out Of Stock

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    SizeDIN W48×H48mm
    Display method4-digit 7-segment LED
    Control methodON/OFF, P, PI, PD, PID
    Input specificationThermocouple: K(CA), J(IC), L(IC)
    RTD: DPt100Ω, Cu50Ω
    Sampling cycle100ms
    Control outputIndicator
    Power supply24VAC~ 50/60Hz, 24-48VDC
    Display accuracy_RTD•At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit
    •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
    Display accuracy_Thermocouple•At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit
    •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
    Hysteresis(adjustable sensitivity)1 to 100℃/℉(0.1 to 50.0℃/℉) variable
    Proportional band0.1 to 999.9℃/℉
    Integral time0 to 9999 sec
    Derivative time0 to 9999 sec
    Control period0.5 to 120.0 sec
    Manual reset0.0 to 100.0%
    Environment_Ambient temperature-10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
    Insulation typeDouble insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: AC power 2kV, AC/DC Power 1kV)
    WeightApprox. 141g(approx. 94g)
