AUTONICS

    In Stock (835 Available)

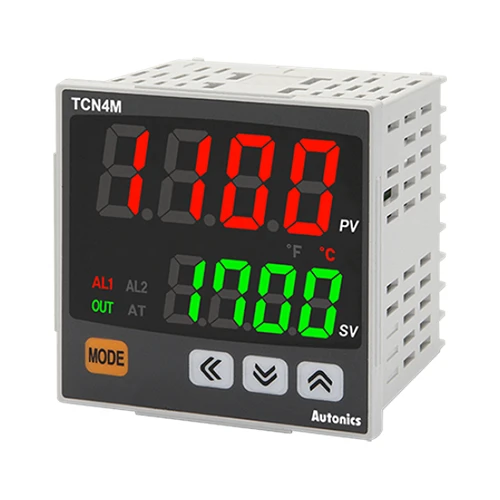

    TCN4M-24R

    Temp Control, W72 x H72, Dual display 4 Digit, PID Control, Relay & SSR Output, 2 Alarm Output, 100-240 VAC


    $109.31 $91.09 / each
    1
    TCN4M-24R
    AUTONICS
    FACTORY SEALED
    Add To Cart Buy Now

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Display method4-digit 7-segment LED
    Control methodON/OFF, P, PI, PD, PID
    Input specificationThermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC)
    RTD: DPt100Ω, Cu50Ω
    Sampling cycle100ms
    Control outputRelay(250VAC~ 3A) or SSR drive(12VDC EQ) [ON/OFF]
    Option outputAlarm 1/2
    Power supply100-240VAC~ 50/60Hz
    Display accuracy_RTD•At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit
    •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
    Display accuracy_Thermocouple•At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit
    •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
    Hysteresis(adjustable sensitivity)1 to 100℃/℉(0.1 to 50.0℃/℉) variable
    Proportional band0.1 to 999.9℃/℉
    Integral time0 to 9999 sec
    Derivative time0 to 9999 sec
    Control period0.5 to 120.0 sec
    Manual reset0.0 to 100.0%
    Environment_Ambient temperature-10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
    Insulation typeDouble insulation or reinforced insulation(mark: INS, dielectric strength between the measuring input part and the power part: AC power 2kV, AC/DC Power 1kV)
    WeightApprox. 203g(approx. 133g)
