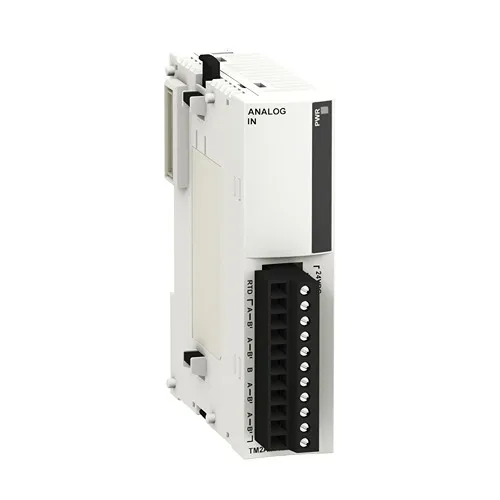

TM2AMI4LT
I/O Expansion Module, Modicon M238 Logic Controller, Twido, 4 Inputs Voltage/Current/Temperature, Non Differential, Wear Part
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon M238 logic controller |
|---|---|
| product or component type | I/O expansion module |
| analogue input number | 4 |
| Analogue input type | Voltage 0...10 V non differential Pt 100/Pt 1000 temperature probe - 200...600 °C non differential Ni 100/Ni 1000 temperature probe - 50...150 °C non differential current 0...20 mA non differential |
| Cross talk |
| Range compatibility | Twido Advantys OTB |
|---|---|
| Analogue input resolution | 12 bits |
| LSB value | 2.5 mV voltage voltage 4.8 µA current current 0.2 °C temperature probe Pt 100/Pt 1000 0.05 °C temperature probe Ni 100/Ni 1000 |
| Permissible continuous overload | 40 mA current 13 V voltage |
| Input impedance | >= 10 kOhm temperature probe 470 Ohm current 10 kOhm voltage |
| Sampling duration | 160 ms |
| Acquisition period | 320 ms per channel + 1 controller cycle time temperature probe 160 ms per channel + 1 controller cycle time voltage/current |
| Measurement error | +/- 0.2 % of full scale 0...10 V 0...10 V 25 °C +/- 0.2 % of full scale 4...20 mA 4...20 mA 25 °C +/- 0.4 % of full scale Pt 100/Pt 1000, Ni 100/ Ni 1000 25 °C |
| Temperature coefficient | +/- 0.004 %FS/°C temperature probe +/- 0.009 %FS/°C current +/- 0.009 %FS/°C voltage |
| Repeat accuracy | +/-0.1 %FS |
| Non-linearity | +/- 0.02 %FS |
| Total error | +/-0.5 %FS |
| Type of cable | Shielded cable |
| Insulation between channel and internal logic | Photocoupler |
| Supply | External supply |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4…28.8 V |
| Electrical connection | 1 removable screw terminal block |
| Current consumption | 50 mA 5 V DC internal 60 mA 24 V DC external |
| net weight | 0.19 lb(US) (0.085 kg) |
| Dielectric strength | 2500 V between the I/O and internal logic |
|---|---|
| Width | 0.93 in (23.5 mm) |
| Depth | 2.76 in (70 mm) |
| Height | 3.54 in (90 mm) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.82 in (7.17 cm) |
| Package 1 Width | 3.99 in (10.138 cm) |
| Package 1 Length | 4.80 in (12.186 cm) |
| Package 1 Weight | 5.15 oz (146.0 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 11.81 in (30.0 cm) |
| Package 2 Width | 11.81 in (30.0 cm) |
| Package 2 Length | 15.75 in (40.0 cm) |
| Package 2 Weight | 6.77 lb(US) (3.07 kg) |
