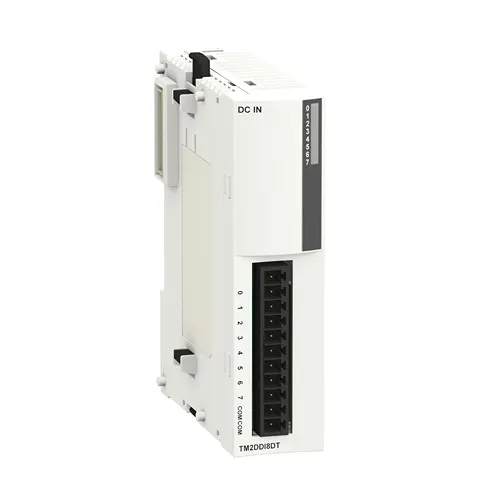

TM2DDI8DT
I/O Expansion Module, Modicon M238 Logic Controller, Twido, 8 Inputs 24Vdc, 1 Removable Screw Terminal Block, Wear Part
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon M238 logic controller |
|---|---|
| product or component type | I/O expansion module |
| Discrete input number | 8 |
| Discrete input voltage | 24 V |
| discrete input voltage type | DC |
| Range compatibility | Twido Advantys OTB |
|---|---|
| Input voltage limits | 20.4...28.8 V |
| Discrete input logic | Sink or source |
| Discrete input current | 7 mA |
| Input impedance | 3.4 kOhm |
| Number of common point | 1 |
| Response time | 4 ms at state 0 4 ms at state 1 |
| Isolation between channels | None |
| Isolation between channels and internal logic | 500 V for 1 minute |
| Current consumption | 25 mA 5 V DC at state 1 for all input |
| Local signalling | 1 display block |
| Electrical connection | 1 removable screw terminal block |
| Mounting support | 35 mm symmetrical DIN rail |
| net weight | 0.22 lb(US) (0.1 kg) |
| Depth | 3.33 in (84.6 mm) |
|---|---|
| Height | 3.54 in (90 mm) |
| Width | 0.93 in (23.5 mm) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.99 in (7.6 cm) |
| Package 1 Width | 4.17 in (10.6 cm) |
| Package 1 Length | 5.04 in (12.8 cm) |
| Package 1 Weight | 6.42 oz (182.0 g) |
