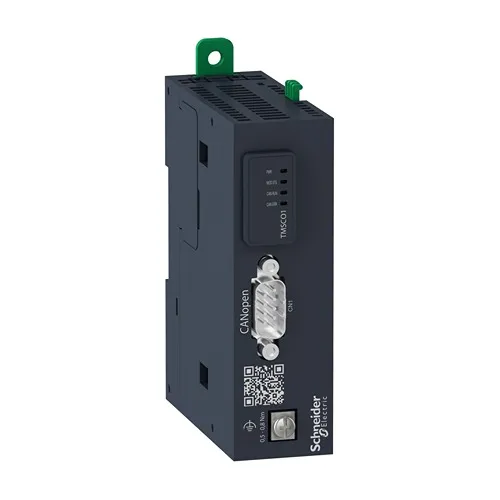

TMSCO1
Smart Communication Module, Modicon M262, Canopen, 1 Subd9
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon M262 |
|---|---|
| product or component type | Smart communication module |
| Range compatibility | Modicon M262 |
|---|---|
| Current consumption | 50 mA 24 V |
| Number of module per PLC | 1 maximum per logic controller 1 maximum per motion controller |
| Services | Maximum 63 slave nodes |
| Communication port protocol | CANopen |
| Local signalling | PWR 1 LED green) MOD STS 1 LED green/red) CAN RUN 1 LED green) CAN ERR 1 LED red) |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Width | 1.18 in (30 mm) |
| Height | 3.94 in (100 mm) |
| Depth | 3.48 in (88.3 mm) |
| Standards | UL 61010-1 UL 61010-2-201 CSA C22.2 No 61010-1 CSA C22.2 No 61010-2-201 CSA C22.2 No 213 ANSI/ISA 12-12-01 IEC 61131-2 |
|---|---|
| Product certifications | CE cULus RCM EAC (pending) Achilles |
| Resistance to electrostatic discharge | 4 kV on contact IEC 61000-4-2 8 kV on air IEC 61000-4-2 |
| Resistance to electromagnetic fields | 9.14 V/yd (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.74 V/yd (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.91 V/yd (1 V/m) 2 GHz...3 GHz IEC 61000-4-3 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 power lines) 1 kV IEC 61000-4-4 Ethernet line) 1 kV IEC 61000-4-4 serial link) 1 kV IEC 61000-4-4 input) 1 kV IEC 61000-4-4 transistor output) |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-4 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) |
| Electromagnetic emission | Conducted emissions 120...69 dBµV/m QP power lines)10…150 kHz IEC 55011 Conducted emissions 63 dBμV/m QP power lines)1.5…30 MHz IEC 55011 Radiated emissions 40 dBµV/m A30…230 kHz IEC 55011 Conducted emissions 79...63 dBμV/m QP power lines)150…1500 kHz IEC 55011 Radiated emissions 47 dBµV/m A230…1000 MHz IEC 55011 |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) horizontal installation -4…122 °F (-20…50 °C) vertical installation |
| ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 10…95 %, without condensation in operation) 10…95 %, without condensation in storage) |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0.00…9842.52 ft (0…3000 m) |
| Vibration resistance | 3.5 mm 2…8.4 Hz symmetrical rail 1 gn 8.4…200 Hz symmetrical rail 3.5 mm 2…8.4 Hz panel mounting 1 gn 8.4…200 Hz panel mounting |
| Shock resistance | 15 gn 11 ms |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.48 in (6.3 cm) |
| Package 1 Width | 4.65 in (11.8 cm) |
| Package 1 Length | 6.65 in (16.9 cm) |
| Package 1 Weight | 8.82 oz (250 g) |
