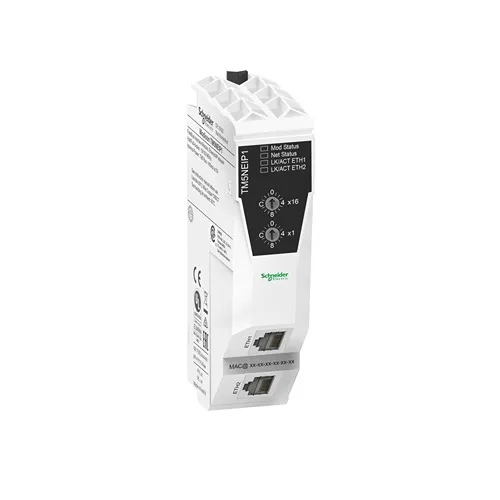

TM5NEIP1
Ip20 I/O Distributed Performance Ethernet/Ip Fieldbus Interface Tm5 Module
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| product or component type | Ethernet module |
|---|---|
| Product specific application | Bus coupler module |
| Range compatibility | Modicon TM5 Modicon TM7 |
|---|---|
| Product compatibility | Logic controller Motion controller |
| Integrated connection type | Ethernet/IP |
| Connector type | RJ45 2 Ethernet daisy chain shielded |
| Exchange mode | Half duplex, full duplex, autonegotiation, auto MDIX |
| Transmission rate | 10/100 Mbit/s |
| Web server | Embedded |
| Local signalling | 1 LED green/red module status 1 LED green/red network 1 LED green Ethernet activity (ETH1) 1 LED green Ethernet activity (ETH2) |
| marking | CE EAC UL CSA |
| Width | 0.98 in (25 mm) |
| Height | 3.90 in (99 mm) |
| Depth | 2.95 in (75 mm) |
| net weight | 0.06 lb(US) (0.025 kg) |
| Standards | IEC 61131-2:2007 UL 508 |
|---|---|
| Electromagnetic compatibility | Emission standard for industrial environments IEC 61000-6-4 2011/A1 Immunity for industrial environments IEC 61000-6-2 |
| Product certifications | UL 508 CSA 22-2 No 142-M1987 CSA 22-2 No 213-M1987 |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) horizontal position) -4…122 °F (-20…50 °C) vertical position) |
| ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % non-condensing |
| IP degree of protection | IP20 |
| Pollution degree | 2 IEC 60664 |
| Environmental characteristic | No corrosion resistance |
| Operating altitude | 0...2000 m |
| Storage altitude | 0.00…9842.52 ft (0…3000 m) |
| Vibration resistance | 3.5 mm constant amplitude 5…84 Hz 35 x 15 mm symmetrical DIN rail 9.8 m/s² constant acceleration 8.4…150 Hz |
| Shock resistance | 147 m/s² 11 ms |
| Resistance to electrostatic discharge | 4 kV contact discharge IEC 61000-4-2 8 kV air discharge IEC 61000-4-2 |
| Resistance to electromagnetic fields | 0.91 V/yd (1 V/m) 2...2.7 GHz IEC 61000-4-3 9.14 V/yd (10 V/m) 80 MHz...2 GHz IEC 61000-4-3 |
| Resistance to fast transients | 1 kV IEC 61000-4-4 I/O) 1 kV IEC 61000-4-4 shielded cable) 2 kV IEC 61000-4-4 power lines) |
| Surge withstand | 0.5 kV in differential mode 24 V DC IEC 61000-4-5 1 kV in common mode 24 V DC IEC 61000-4-5 1 kV in differential mode 230 V AC IEC 61000-4-5 2 kV in common mode 230 V AC IEC 61000-4-5 |
| Disturbance radiated/conducted | 10 V 0.15...80 MHz IEC 61000-4-6 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.26 in (3.200 cm) |
| Package 1 Width | 2.36 in (6.000 cm) |
| Package 1 Length | 4.13 in (10.500 cm) |
| Package 1 Weight | 2.50 oz (71.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 8.58 lb(US) (3.890 kg) |
