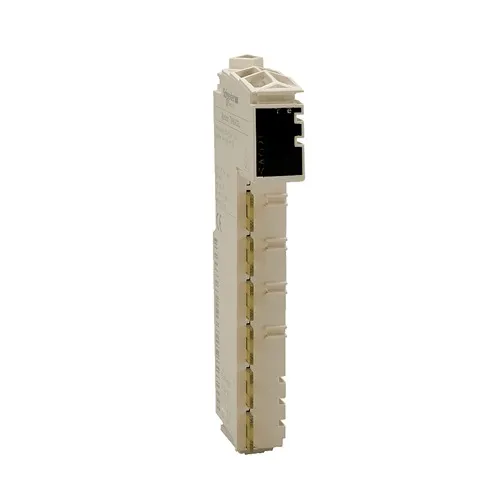

TM5SAI4H
Analog Input Module, Modicon Tm5, 4I, +/-10V, 0 To 20Ma, 16Bits
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon TM5 |
|---|---|
| product or component type | Analog input module |
| analogue input number | 4 |
| Analogue input type | Current 0...20 mA differential voltage +/- 10 V differential |
| Analogue input resolution | 15 bits + sign +/- 10 V 15 bits 0...20 mA |
| Range compatibility | Modicon LMC058 Modicon M258 |
|---|---|
| Product compatibility | Motion controller Logic controller |
| Measurement resolution | 305 µV, +/- 10 V 610 nA, 0...20 mA |
| Colour | White |
| Input impedance | >= 20 mOhm voltage |
| Load impedance ohmic | |
| Sampling duration | 50 µs |
| Measurement error | |
| Temperature coefficient | 0.01 %FS/°C |
| Non-linearity | |
| Type of cable | Shielded cable |
| Isolation | 500 Vrms AC insulation between channel and bus No insulation between channels |
| Supply | Internal |
| [Us] rated supply voltage | 24 V DC -15...20 % |
| Common mode rejection | > 70 dB |
| Local signalling | 1 LED green power supply 1 LED red power supply 4 LEDs green input status |
| Current consumption | 2 mA 5 V DC bus 63 mA 24 V DC input/output |
| Maximum power dissipation in W | 1.51 W |
| marking | CE |
| net weight | 0.06 lb(US) (0.025 kg) |
| Standards | CSA C22.2 No 213 IEC 61131-2 CSA C22.2 No 142 UL 508 |
|---|---|
| Product certifications | CSA C-Tick GOST-R cULus |
| Ambient air temperature for operation | 32…131 °F (0…55 °C) without derating horizontal installation) 32…140 °F (0…60 °C) with derating factor horizontal installation) 32…122 °F (0…50 °C) vertical installation) |
| ambient air temperature for storage | -13…158 °F (-25…70 °C) |
| Relative humidity | 5…95 % without condensation |
| IP degree of protection | IP20IEC 61131-2 |
| Pollution degree | 2 IEC 60664 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0.00…9842.52 ft (0…3000 m) |
| Vibration resistance | 1 gn 8.4…150 Hz DIN rail 3.5 mm 5…8.4 Hz DIN rail |
| Shock resistance | 15 gn 11 ms |
| Resistance to electrostatic discharge | 4 kV on contact IEC 61000-4-2 8 kV in air IEC 61000-4-2 |
| Resistance to electromagnetic fields | 0.91 V/yd (1 V/m) 2...2.7 GHz IEC 61000-4-3 9.14 V/yd (10 V/m) 80...2000 MHz IEC 61000-4-3 |
| Resistance to fast transients | 1 kV IEC 61000-4-4 I/O) 1 kV IEC 61000-4-4 shielded cable) 2 kV IEC 61000-4-4 power lines) |
| Surge withstand | 0.5 kV differential mode IEC 61000-4-5 1 kV common mode IEC 61000-4-5 |
| Electromagnetic compatibility | EN/IEC 61000-4-6 |
| Disturbance radiated/conducted | CISPR 11 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.79 in (2.000 cm) |
| Package 1 Width | 2.36 in (6.000 cm) |
| Package 1 Length | 4.13 in (10.500 cm) |
| Package 1 Weight | 1.45 oz (41.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 97 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 9.50 lb(US) (4.310 kg) |
