Out Of Stock

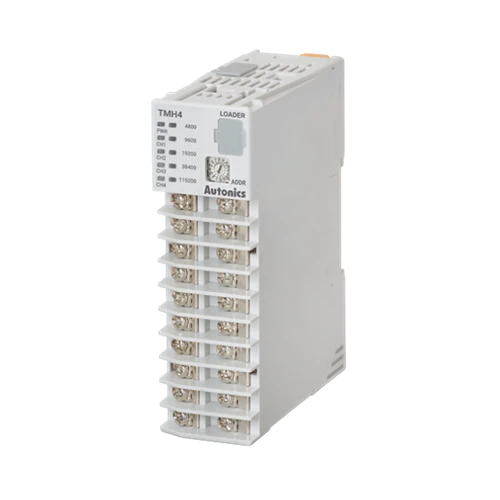

    Advanced Multi-Channel Modular Temperature Controller, 4 channel, CT Input, RS485 Communicate Output, 24VDC, Selectable Current or SSR Drive Output, Expansion module

    $791.59 $659.66 / each

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.

    No. of channel4-channel
    Sampling cycle50ms(2-CH or 4-CH synchronous sampling)
    Input type_TCK(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II
    Input type_RTDDPt100Ω, JPt100Ω, DPt50Ω, Cu100Ω, Cu50Ω, Nikel 120Ω 3-wire type(permissible line resistance max. 5Ω)
    Input type_AnalogVoltage: 0-100mVDC EQ, 0-5VDC EQ, 1-5VDC EQ, 0-10VDC EQ
    Current: 0-20mA, 4-20mA
    Input type_CT0.0-50.0A(primary current measurement range) ※CT ratio=1/1000, Measured accuracy: ±5% F.S. ±1-digit
    Control methodHeating, cooling, heating & cooling: ON/OFF, P, PI, PD, PID control
    Control output_SSRMax. 12VDC EQ Â±3V 20mA
    Control output_CurrentSelectable DC 4-20mA or DC 0-20mA(load resistance max. 500Ω)
    CommunicationModbus RTU
    Proportional bandRTD/Thermocouples: 1 to 999℃/℉ (0.1 to 999.9℃/℉), analog: 0.1 to 999.9 digit
    Integral time0 to 9999 sec
    Derivative time0 to 9999 sec
    Control period1.0 to 120.0 sec
    Manual reset0 to 100%( 0.0 to 100.0%)
    Insulation typeDouble insulation or reinforced insulation(mark: INS, dielectric strength between the measuring input part and the power part: 1kV)
    Unit weight (packaged weight)≈ 173 g (≈ 246 g)
    Power supply24VDC EQ
    Allowable voltage range90 to 110% of rated voltage
    Power consumptionMax. 5W(for max. load)
    Display methodNone-parameter setting and monitoring is available at external devices(PC, PLC, etc.)
    Memory Protection≈ 10 years (non-volatile semiconductor memory type)
    Insulation resistance100MΩ(at 500VDC megger)
    Dielectric strengthBetween the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute
    Vibration0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours
    Noise immunity±0.5kV the square wave noise (pulse width: 1㎲) by the noise simulator
    Environment_Ambient temperature-10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
    Protection structureIP20(IEC standard)
