AUTONICS

    Out Of Stock

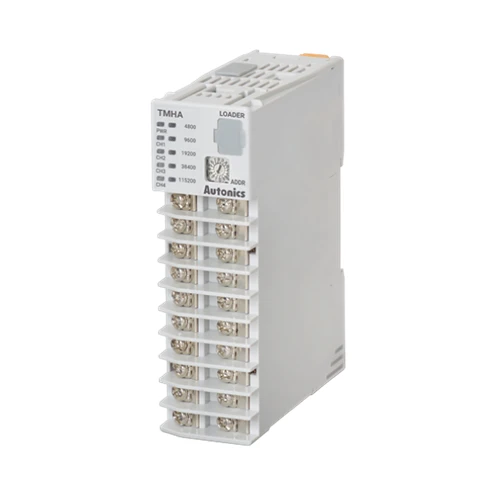

    TMHA-42AE

    Advanced Multi-Channel Modular Temperature Controller, 4 channel, Temperature Sensor/Analog Input 1 to 4, Transmission Output(0/4-20mA), Expansion module


    $440.59 $367.16 / each
    1
    TMHA-42AE
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    No. of channel4-channel
    Sampling cycle50ms(4-CH synchronous sampling)
    Input type_TCK(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II
    Input type_RTDDPt100Ω, JPt100Ω, DPt50Ω, Cu100Ω, Cu50Ω, Nikel 120Ω 3-wire type(permissible line resistance max. 5Ω)
    Input type_AnalogVoltage: 0-100mVDC , 0-5VDC , 1-5VDC , 0-10VDC
    Current: 0-20mA, 4-20mA
    Output_TransmissionSelectable DC 4-20mA or DC 0-20mA(load resistance max. 500Ω)
    CommunicationModbus RTU
    Insulation typeDouble insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 1kV)
    Unit weight (packaged weight)≈ 161 g (≈ 234 g)
    Power supply24VDC
    Allowable voltage range90 to 110% of rated voltage
    Power consumptionMax. 5W(for max. load)
    Display methodNone-parameter setting and monitoring is available at external devices(PC, PLC, etc.)
    Memory Protection≈ 10 years (non-volatile semiconductor memory type)
    Insulation resistance100MΩ(at 500VDC megger)
    Dielectric strengthBetween the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute
    Vibration0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours
    Noise immunity±0.5kV the square wave noise (pulse width: 1㎲) by the noise simulator
    Environment_Ambient temperature-10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
    Protection structureIP20(IEC standard)
