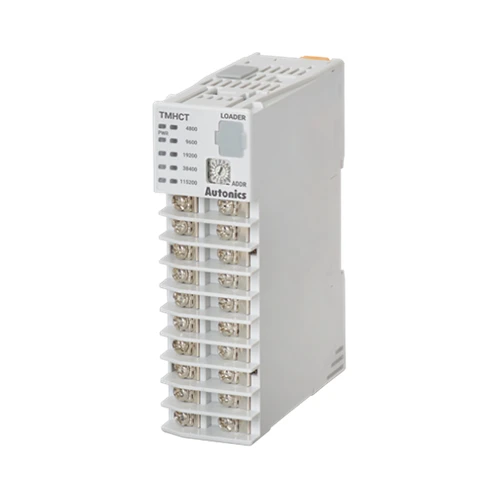

TMHCT-82NE
Advanced Multi-Channel Modular Temperature Controller, CT Input 1 to 8, Expansion module
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| No. of channel | 8-point |
|---|---|
| Input type_CT | 0.0-50.0A(primary current measurement range) ※CT ratio=1/1000 |
| Communication | Modbus RTU |
| Unit weight (packaged weight) | ≈ 148 g (≈ 221 g) |
| Power supply | 24VDC  |
| Allowable voltage range | 90 to 110% of rated voltage |
| Power consumption | Max. 5W(for max. load) |
| Display method | None-parameter setting and monitoring is available at external devices(PC, PLC, etc.) |
| Memory Protection | ≈ 10 years (non-volatile semiconductor memory type) |
| Insulation resistance | 100MΩ(at 500VDC megger) |
| Dielectric strength | Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute |
| Vibration | 0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours |
| Noise immunity | ±0.5kV the square wave noise (pulse width: 1㎲) by the noise simulator |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP20(IEC standard) |
