Out Of Stock

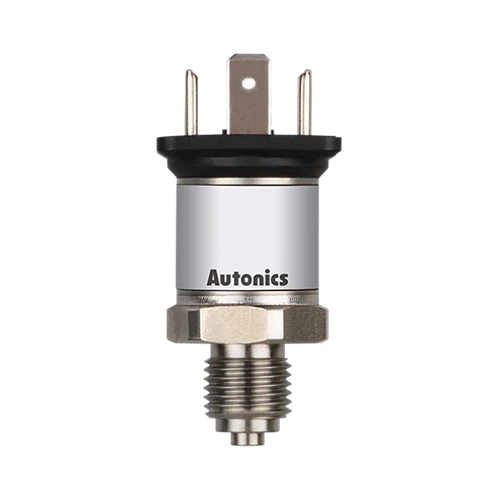

    Pressure Transmitter, Gauge Pressure, DIN 43650-A Connector Type, -0.1 to 0Mpa, 4-20 mA Output, NPT1/4"

    $185.71 $154.76 / each

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.

    Measured materialsLiquid, gas, oil (lnappropriate to corrosion environment for stainless steel 316L)
    Power supply11-36VDC EQ (ripple P-P: max. 10%)
    AccuracyMax. ±0.5% F.S. (including linearity, hysteresis, reproducibility)
    LinearityMax. ±0.2% F.S.
    HysteresisMax. ±0.2% F.S.
    Environment_Ambient temperature-40 to 85℃, storage: -40 to 125℃
    Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
    Environment_Fluid temperature-40 to 125℃
    Protection structureIP65(IEC standard)
    MaterialStainless steel 316L (head part of head type: aluminium diecasting), connector: Polybutylene terephthalate G30,
    water-proof rubber: silicon
    Measurement pressureSealed gauge pressure
    Connection typeDIN43650-A connector type
    Pressure range-0.1 to 0MPa
    Weightapprox. 130g (approx. 50g)
    Output specificationCurrent output(DC4-20mA)
    Pressure portNPT1/4(DIN3852)
