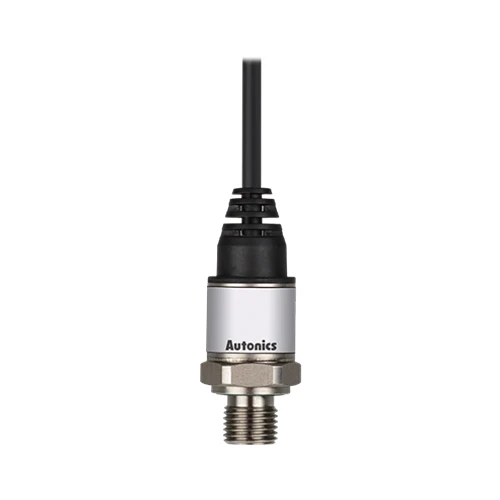

TPS30-G56AG8-00
Pressure Transmitter, Gauge Pressure, Cable Type, 0 to 1Mpa, 4-20 mA Output, PF1/8
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Measured materials | Liquid, gas, oil (lnappropriate to corrosion environment for stainless steel 316L) |
|---|---|
| Power supply | 11-36VDC  (ripple P-P: max. 10%) |
| Accuracy | Max. ±0.5% F.S. (including linearity, hysteresis, reproducibility) |
| Linearity | Max. ±0.2% F.S. |
| Hysteresis | Max. ±0.2% F.S. |
| Environment_Ambient temperature | -40 to 80℃, storage: -40 to 80℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Environment_Fluid temperature | -40 to 125℃ |
| Protection structure | IP67(IEC standard) |
| Material | Stainless steel 316L (head part of head type: aluminium diecasting), connector: Polybutylene terephthalate G30, water-proof rubber: silicon |
| Measurement pressure | Gauge pressure |
| Connection type | Cable type |
| Pressure range | 0 to 1MPa |
| Weight | Approx. 200g(approx. 120g) |
| Output specification | Current output(DC4-20mA) |
| Pressure port | G3/8(PF)(EN837) |
